Back up data (reference images and automatic inspection reports) in the Auto Inspection Unit UK-301 HDD to a USB external storage device.
Save the following data in the Auto Inspection Unit UK-301, HDD to an external storage device.
Category | Network / Security, Device Management | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | All the following optional devices are required. Intelligent Quality Optimizer IQ-501 Auto Inspection Unit UK-301 Video Interface Kit VI-514 Video Interface Kit VI-515 | ||
Required items | USB external storage device | ||

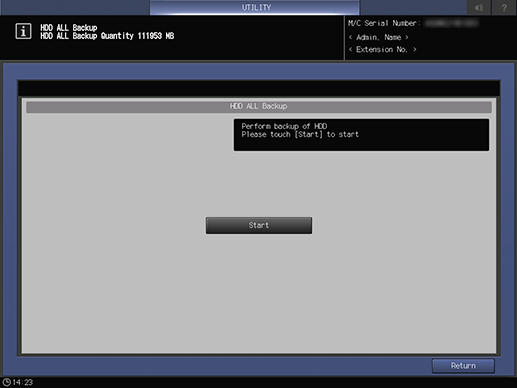

Setting items | [Start] | Starts backup of all data on the Auto Inspection Unit UK-301 HDD. | |
[Return] | Moves to the previous screen. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Control panel - Utility/Counter - [Administrator Setting] - [Security Setting (UK-301)] - [HDD ALL Backup] |
Make sure you use an external storage device that meets all these conditions.
The total size of backup data is displayed in the message display area on the screen.
If the capacity of external storage media is not sufficient to store the backup data, an error dialog box will appear. Press [Close] to cancel the backup.
An error message dialog box will be displayed if the backup operations fail. Press to [Close] to try to back up again.
If you do not want to retry backup, turn the Sub power switch off and back on again.
