Adjust the magnification in the main scanning direction (crosswise direction) of the back side when using the ADF.
Scanning accuracy is maintained by making regular adjustments.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel, Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Paper Feeder Unit PF-713 | ||
Required items | - | ||
Setting items | [Current Data] | Displays the current magnification in the main scanning direction when scanning the original on the ADF. | |
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

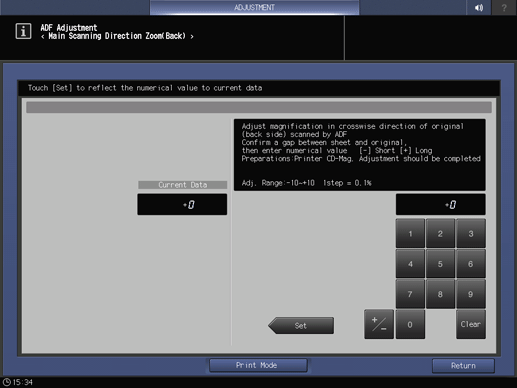

Screen access | Touch panel - [MACHINE] - [Adjustment] - [ADF Adjustment] - [Main Scan Dir. Zoom(Back)] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [ADF Adjustment] - [Main Scan Dir. Zoom(Back)] |
The test chart is scanned and a sample is printed out.
Load the test chart with the back side facing upward.
Standard value: 0 mm ^ 1.4 mm
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-10~+10 1step = 0.1%]
