Adjust the slitting widths of the top and bottom sides on the saddle stitcher.
Make this adjustment when there is a problem with the printout finishing.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Saddle Stitcher SD-513 with Trimmer Unit TU-503 mounted | ||
Required items | - | ||
Setting items | [(1)Front] | Adjusts the slitting width of the front side. | |
[(2)Rear] | Adjusts the slitting width of the rear side. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

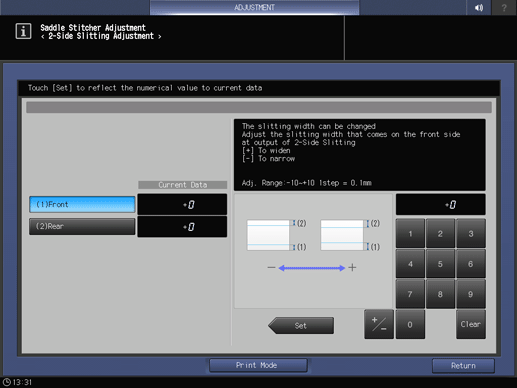

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [2-Side Slitting Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [2-Side Slitting Adjustment] |
A sample is output.

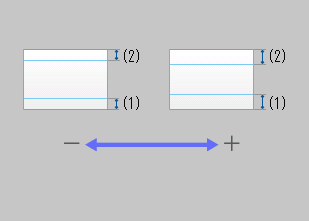

Standard value: Setting value -a = within -0.5 mm to +0.5 mm
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-10~+10 1step = 0.1mm]
