Adjust the alignment plate position in the paper feed direction of the Relay Unit RU-510 to eliminate misalignment of punch holes.
This function is available when paper is conveyed while the position of the paper feed direction is not fixed against the next-stage finisher.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Relay Unit RU-510 | ||
Required items | - | ||
Setting items | Keypad | Used to enter numeric values. | |
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Relay Stacker Adjustment] - [Paper Length Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Relay Stacker Adjustment] - [Paper Length Adjustment] |
A sample is output. This section describes a sample with punch holes.

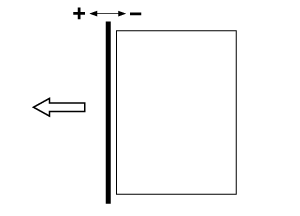

If punch holes are misaligned in the paper feed direction, adjust the FD alignment plate position.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[-] To reduce the dispersion, [+] To reduce the misalignment
[Adj. Range:-50~+50 1step = 0.1mm]
To make adjustments, set the paper length adjustment value to the maximum (to reduce misalignment), adjust in the direction to reduce dispersion , and find a point at which the through hole of the punch holes is not misaligned.
