Adjust the trimming width on the fore-edge side on the saddle stitcher.
Make this adjustment when there is a problem with the printout finishing.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Saddle Stitcher SD-513 | ||
Required items | - | ||
Setting items | [Offset for All Size] | Adjusts the trimming width common to all the paper sizes. | |
Paper size selection key | Selects the paper size to adjust. | ||
[+] / [,] | Switches the paper size page. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Fore-edge Trimming Adj.] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Fore-edge Trimming Adj.] |

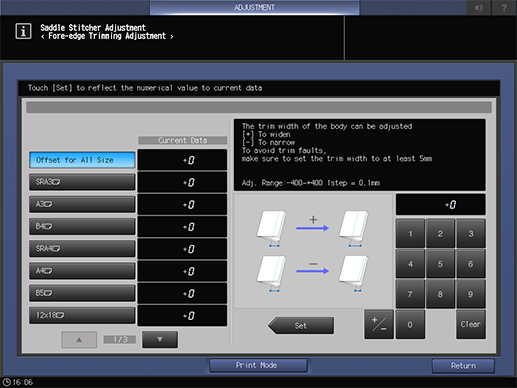

A sample is output.
Standard value: a = 5 mm or more
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-400~+400 1step = 0.1mm]
Set the trimming width so that the cover is trimmed by 5.0 mm or more. If the trimming width is below 5.0 mm, it may cause a trimming failure. Therefore, even if the value is set so that the trimming width is less than 5.0 mm, the trimming width is automatically controlled so that the actual trimming width is not less than 5.0 mm.
