Adjust the push-in amount of the double fold plate when performing Tri-Fold.
Make this adjustment when a significant misalignment occurs on a tri-fold paper stack.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Finisher FS-541 with Saddle Stitcher SD-510 mounted | ||
Required items | - | ||
Setting items | Paper size selection key | Selects the paper size to adjust. | |
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

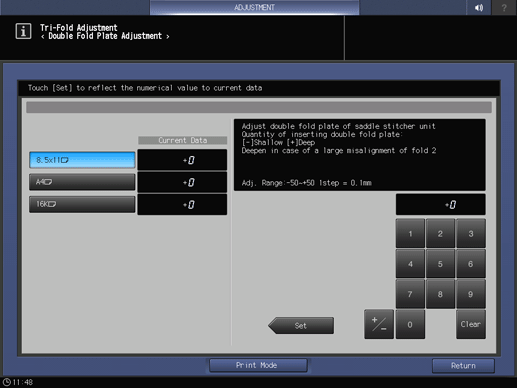

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Fold) Adj.] - [Tri-Fold Adjustment] - [Double Fold Plate Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Fold) Adj.] - [Tri-Fold Adjustment] - [Double Fold Plate Adjustment] |
[Separate Scan] is automatically set to [Multi 3-Fold].
A sample is output.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-50~+50 1step = 0.1mm]
If a significant bundle misalignment occurs or the double-fold position is misaligned on the cover and the 2nd and subsequent sheets when multi-folding is performed for a solid image, make the push-in amount deeper.
If a box-shaped fold is found on thin paper, make the push-in amount shallower.
