Adjust [Card Cutting Mode] of Trimmer Unit TU-510.
You can adjust the trim position and slit position.

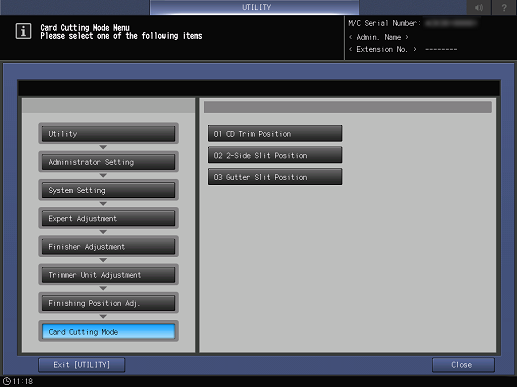

Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Trimmer Unit Adjustment] - [Finishing Position Adj.] - [Card Cutting Mode]
Common keys
Key name | Description |
---|---|
[Print Mode] | Outputs a sample for adjustment. |
[Close] | Moves to the previous screen. |
[Return] | Moves to the previous screen. |
[Exit [UTILITY]] | Closes the [UTILITY] screen. |
