Adjust the half-fold crease position of Creaser Unit CR-101 mounted on Saddle Stitcher SD-513.
Make this adjustment when the distance from the cover edge to the crease position on the top face of output paper deviates from the standard value.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Saddle Stitcher SD-513 with Creaser Unit CR-101 mounted | ||
Required items | - | ||
Setting items | [Offset for All Size] | Adjusts the crease position common to all the paper sizes. | |
Paper size selection key | Selects the paper size to adjust. | ||
[+] / [,] | Switches the paper size page. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

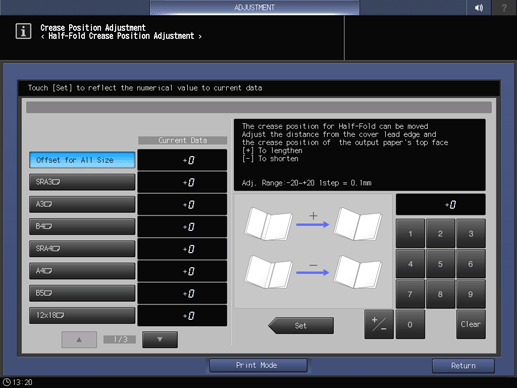

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Crease Position Adjustment] - [Half-Fold Crease Position] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Crease Position Adjustment] - [Half-Fold Crease Position] |
A sample is output.
Standard value: a = -1.0 mm to +1.0 mm or less
(1) Folding line (2) Crease part

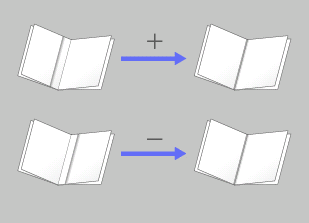

Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-20~+20 1step = 0.1mm]
