Adjust the fold position when performing [Multi 3-Fold].
Make this adjustment when the fold position for [Multi 3-Fold] deviates from the standard value.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Finisher FS-541 with Saddle Stitcher SD-510 mounted | ||
Required items | - | ||
Setting items | [Fold 1] | Adjusts the 1st fold position. | |
[Fold 2] | Adjusts the 2nd fold position. | ||
Paper size selection key | Selects the paper size to adjust. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

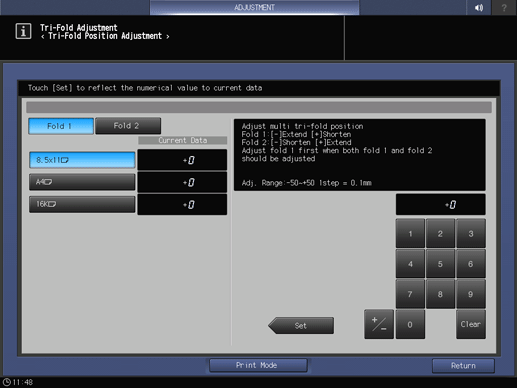

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Fold) Adj.] - [Tri-Fold Adjustment] - [Tri-Fold Position Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Fold) Adj.] - [Tri-Fold Adjustment] - [Tri-Fold Position Adjustment] |
[Separate Scan] is automatically set to [Multi 3-Fold].
A sample is output.
Paper size | Standard value a | Standard value b |
---|---|---|
[8.5e11w] | 95.0 mm -2.0 mm to +2.0 mm | 101.0 mm -2.0 mm to +2.0 mm |
[A4w] | 89.4 mm -2.0 mm to +2.0 mm | 95.0 mm -2.0 mm to +2.0 mm |
[16Kw] | 88.0 mm -2.0 mm to +2.0 mm | 91.0 mm -2.0 mm to +2.0 mm |
Standard value "b" shown in step 5 is changed even if either position of [Fold 1] and [Fold 2] is changed.
When adjusting both [Fold 1] and [Fold 2], first adjust [Fold 1]. [Fold 1] is used as the reference position of [Fold 2].
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-50~+50 1step = 0.1mm]
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-50~+50 1step = 0.1mm]
