Adjust the amount of paper loop for pre-registered rollers such as paper feed trays.
Adjust if there is a paper jam in the register part or if paper curls or wrinkles has occurred.
[Pre-registration Adj.] is added to the adjustment values in [Paper Setting] - [Change Set] - [Expert Adj.] on [MACHINE] screen as shown below. However, the adjustment range of [Tray1] to [Tray9] and [Bypass] is 0 to +149, and that of other items is -99 to +99. Check the adjustment values in [Paper Setting] - [Change Set] - [Expert Adj.] on [MACHINE] screen if the adjustment is not successful.
Category | Adjustment / Maintenance | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | When any of the options detailed below are installed, select [Tray1] to [Tray9] or [Bypass] to make adjustments for each paper thickness or for envelopes. Paper Feeder Unit PF-712 Paper Feeder Unit PF-713 Paper Feeder Unit PF-812 Paper Feeder Unit PF-712 with Multi Bypass Tray MB-511 mounted Paper Feeder Unit PF-812 with Multi Bypass Tray MB-511 mounted | ||
If you select [1st PFU Connecting Part] or [2nd PFU Connecting Part] when the following optional device is mounted, you can make adjustments for each paper thickness. Paper Feeder Unit PF-712 connected in double or triple units | |||
Required items | - | ||
Setting items | Paper tray selection key | Select the adjustment target. | |
Connected part selection key | |||
[ADU Large Size] | |||
[ADU Small Size] | |||
[ADU (2nd) Large Size] | |||
[ADU (2nd) Small Size] | |||
[Thin] | Select the paper thickness to adjust. | ||
[Normal] | |||
[Thick] | |||
[Envelope] | Select this item to adjust envelopes. | ||
[+] / [,] | Switches the adjustment target page. | ||
Keypad | Used to enter numeric values. | ||
[+ / -] | Sets the plus or minus of the numeric value. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the on-screen keypad or the Keypad of the Control panel to [Current Data]. | ||
[Print Mode] | Outputs a chart for measurement. For details, refer to [COPY] Screen. | ||
Remarks | - | ||
Reference | - | ||

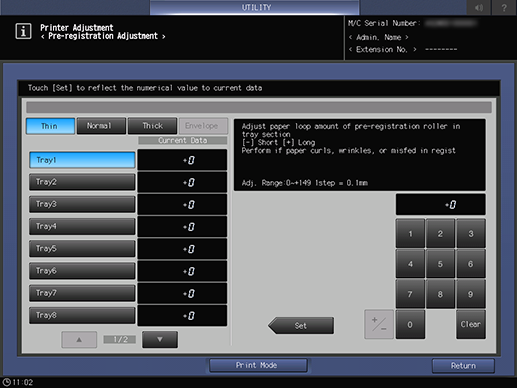

Screen access | Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Printer Adjustment] - [Pre-registration Adj.] |
A chart is output.
For details about the "" mark that is printed on the front side of the chart, refer to About Charts.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
The adjustment ranges are as follows.
[Tray1] to [Tray9], and [Bypass] | Other than items on the left |
---|---|
[Adj. Range:0~+149 1step = 0.1mm] | [Adj. Range:-99~+99 1step = 0.1mm] |
