Adjust the image centering in the crosswise direction when printing.
Check the misalignment between the center of the output paper in the paper feed direction and the center of the image, and then make adjustments so that the image can be printed correctly.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel, Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | Adjustment target selection key | Select the adjustment target. | |
[+] / [,] | Switches the adjustment target page. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the on-screen keypad or the Keypad of the Control panel to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

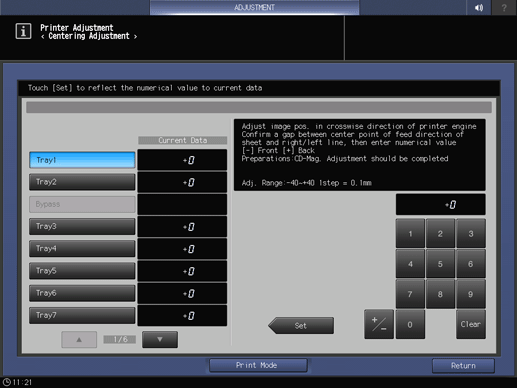

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Machine Adjustment] - [Printer Adjustment] - [Centering Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Printer Adjustment] - [Centering Adjustment] |
A chart is output.
For details about the mark that is printed on the front side of the chart, refer to About Charts.

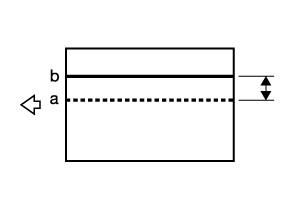

Standard value: within 0 mm ^ 1.5 mm

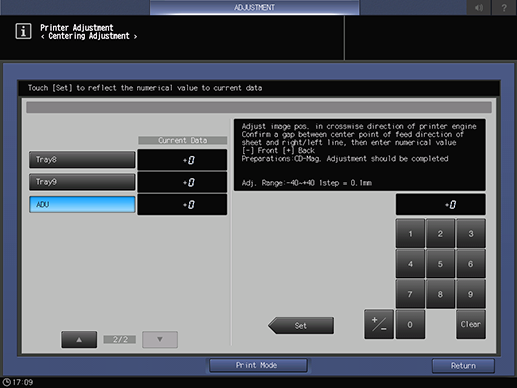

Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-40~+40 1step = 0.1mm]
A chart is output.
The side that does not have the mark is the back side.

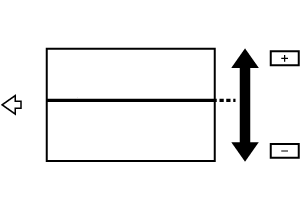

Standard value: within 0 mm ^ 1.5 mm
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-40~+40 1step = 0.1mm]
