Adjust the 2-side slit position in the paper feed direction.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Trimmer Unit TU-510 | ||
Required items | - | ||
Setting items | [2-Side Slit Front] | Adjusts the trim position in the front side. | |
[2-Side Slit Rear] | Adjusts the trim position in the rear side. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Trimmer Unit Adjustment] - [Finishing Position Adj.] - [Card Cutting Mode] - [2-Side Slit Position] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Trimmer Unit Adjustment] - [Finishing Position Adj.] - [Card Cutting Mode] - [2-Side Slit Position] |

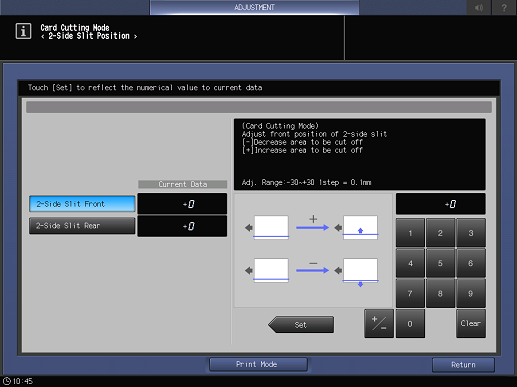

A sample is output.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
(-) To cut a small quantity, (+) To cut a large quantity
[Adj. Range:-30~+30 1step = 0.1mm]
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
(-) To cut a small quantity, (+) To cut a large quantity
[Adj. Range:-30~+30 1step = 0.1mm]
