Adjust the trimming width on the fore-edge side on the saddle stitcher.
Make this adjustment when there is a problem with the printout finishing.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | SaddleStitcher SD-506 | ||
Required items | - | ||
Setting items | [Offset for All Size] | Adjusts the trimming width common to all the paper sizes. | |
Paper size selection key | Selects the paper size to adjust. | ||
[+] / [,] | Switches the paper size page. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

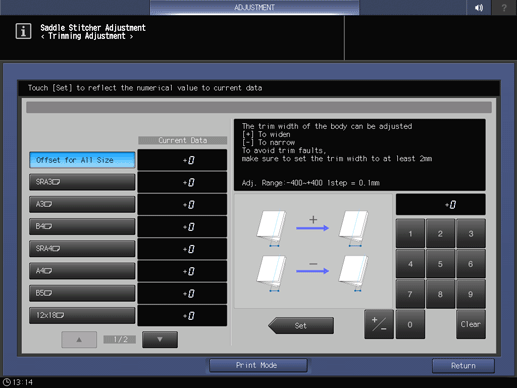

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Trimming Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Trimming Adjustment] |
A sample is output.
Before printing, always pull out the Fold/Staple mode tray. Otherwise, a sample is not output even if you press Start on the Control panel.
Standard value: a = 2.0 mm or more
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-400~+400 1step = 0.1mm]
Set the trimming width so that the cover is trimmed by 2.0 mm or more. If the trimming width is below 2.0 mm, it may cause a trimming failure.
