Adjust the alignment amount in the crosswise direction of Trimmer Unit TU-510.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Trimmer Unit TU-510 with Banner Unit MK-764 mounted | ||
Required items | - | ||
Setting items | Alignment position selection key | Select the alignment position to adjust. | |
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

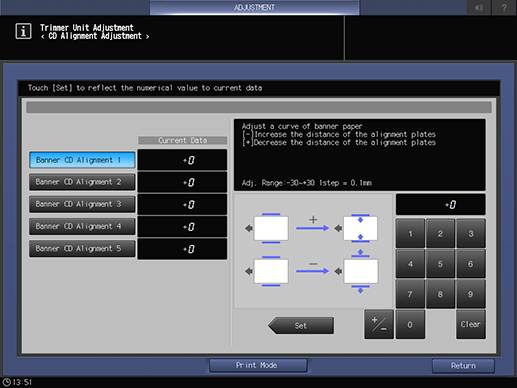

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Trimmer Unit Adjustment] - [CD Alignment Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Trimmer Unit Adjustment] - [CD Alignment Adjustment] |
A sample is output.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
(-) To decrease the push-in amount of the alignment plate, (+) To increase the push-in amount of the alignment plate
[Adj. Range:-30~+30 1step = 0.1mm]
