Adjust the amount of paper loop of the registration roller.
Adjust if there is a paper jam in the register part or if paper curls or wrinkles has occurred.
Category | Adjustment / Maintenance | ||
Location | Machine | Control Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | Paper tray selection key | Select the adjustment target. | |
[ADU] | |||
[+] / [,] | Switches the adjustment target page. | ||
Keypad | Used to enter numeric values. | ||
[+ / -] | Sets the plus or minus of the numeric value. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the on-screen keypad or the Keypad of the Control panel to [Current Data]. | ||
[Print Mode] | Outputs a chart for measurement. For details, refer to [COPY] Screen. | ||
Remarks | - | ||
Reference | - | ||

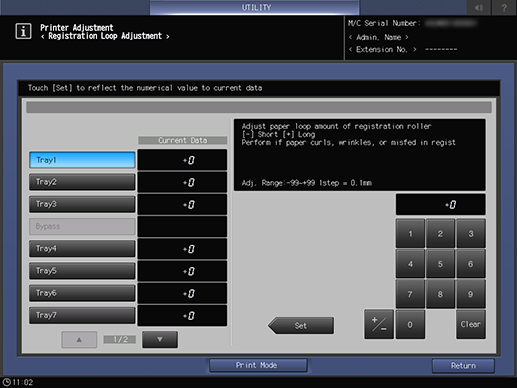

Screen access | Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Printer Adjustment] - [Registration Loop Adj.] |
A chart is output.
For details about the "" mark that is printed on the front side of the chart, refer to About Charts.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-99~+99 1step = 0.1mm]
