Adjust the alignment width in the fore-edge direction (paper feed direction) of the body in the clamp unit.
Make this adjustment when misalignment or distortion occurs in the fore-edge direction of the body during perfect binding using Perfect Binder PB-503.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Perfect Binder PB-503 | ||
Required items | - | ||
Setting items | [Offset for All Size] | Adjusts the alignment width common to all sizes. | |
Paper size selection key | Selects the paper size to adjust. | ||
[+] / [,] | Switches the paper size page. | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | The sizes referred to in this section are those of bodies corresponding to cover sizes. | ||
Reference | - | ||
Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Perfect Binder Adjustment] - [Clamp FD Position Adj.] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Perfect Binder Adjustment] - [Clamp FD Position Adj.] |
When using any paper tray, you need to set a cover tray by selecting [Perfect Bind] of [Output Setting]. For details, refer to [Cover Tray].
A perfect binding sample is output.

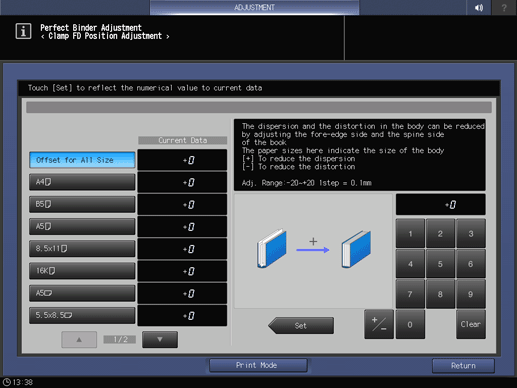

Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
(-) To reduce the distortion, (+) To reduce the misalignment
[Adj. Range:-20~+20 1step = 0.1mm]
