Adjust the paper loop amount of the registration roller to eliminate distortion or creases on the paper.
Perform this function when the punch position is tilted.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Finisher FS-541 with Punch Unit PK-525 mounted | ||
Required items | - | ||
Setting items | [Current Data] | Displays the adjustment value of the loop amount. | |
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to [Current Data]. | ||
Remarks | - | ||
Reference | - | ||

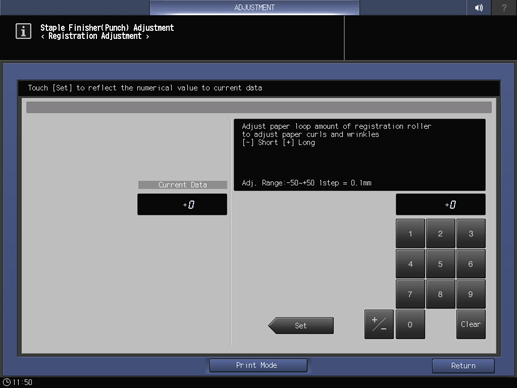

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Punch) Adj.] - [Registration Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Punch) Adj.] - [Registration Adjustment] |
[Output Setting] is automatically set to [Punch].
A sample is output.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-50~+50 1step = 0.1mm]
