Adjust the crease position of the perfect binding cover in Creaser Unit CR-101 mounted on Saddle Stitcher SD-513.
The crease position of the perfect binding cover is controlled so that the reference position is set to suit the width of the spine width of perfect binding. Make this adjustment when the distance from the paper edge to the crease position deviates from the standard value at both the 1st crease position and the 2nd crease position.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | All the following optional devices are required. Saddle Stitcher SD-513 with Creaser Unit CR-101 mounted Perfect Binder PB-503 | ||
Required items | - | ||
Setting items | [Crease Line 1] | Changes the 1st fold position. | |
[Crease Line 2] | Changes the 2nd fold position. | ||
[Offset for All Size] | Adjusts the crease position common to all the paper sizes. | ||
Paper size selection key | Selects the paper size to adjust. | ||
[+] / [,] | Switches the paper size page. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

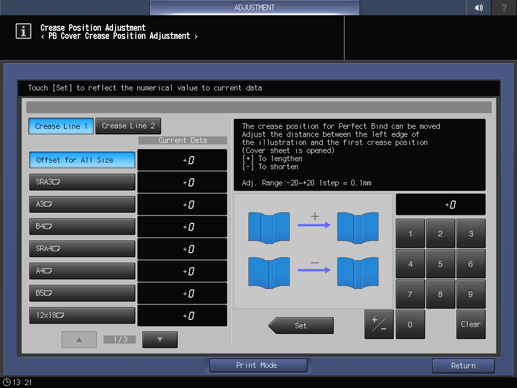

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Crease Position Adjustment] - [PB Cover Crease Position] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Saddle Stitcher Adjustment] - [Crease Position Adjustment] - [PB Cover Crease Position] |
A sample is output.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-20~+20 1step = 0.1mm]

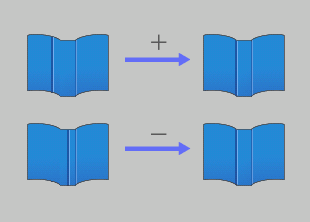

Adjust the length from the paper edge on the left of the top face of the perfect binding cover to the 1st crease position.
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
[Adj. Range:-20~+20 1step = 0.1mm]
Adjust the length from the paper edge on the left of the top face of the perfect binding cover to the 2nd crease position.
