Configure the setting to insert partition paper when output paper does not satisfy the standard.
Set a paper tray to load partition paper into when inserting it.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Intelligent Quality Optimizer IQ-501 and Video Interface Kit VI-514 | ||
Required items | - | ||
Setting items | [ON] | Inserts partition paper when output paper does not satisfy the standard. | |
-[OFF] | Does not insert partition paper even if output paper does not satisfy the standard. | ||

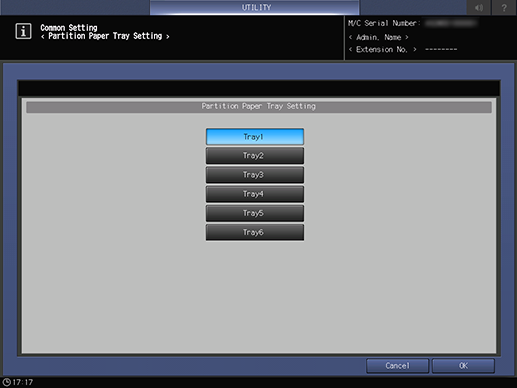

[Partition Paper] | Sets the paper tray to load partition paper into. | ||
Remarks | -: Default | ||
Reference | - | ||
Screen access | Control panel - Utility/Counter - [User Setting] - [Common Setting] - [Partition Paper when Deviation/Out of Range was Detected] | ||
Control panel - Utility/Counter - [Administrator Setting] - [Common Setting] - [Partition Paper when Deviation/Out of Range was Detected] |

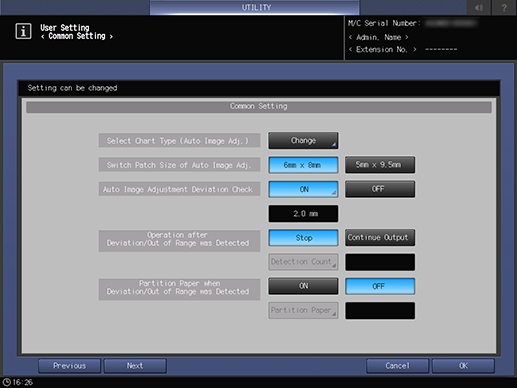

The setting screen is displayed.
