Adjust the staple pitch between 2 staples and the corner staple position.
Make this adjustment when you want to arrange the finishing of printouts.
Category | Adjustment / Maintenance | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Finisher FS-541 | ||
Required items | - | ||
Setting items | [2 Position Pitch(120mm)] | Adjusts the staple pitch when stapling at 2 positions in 120 mm pitch. | |
[2 Position Pitch(140mm)] | Adjusts the staple pitch when stapling at 2 positions in 140 mm pitch. | ||
[2 Position Pitch(165mm)] | Adjusts the staple pitch when stapling at 2 positions in 165 mm pitch. | ||
[Rear Diagonal] | Adjusts the position when diagonally stapling on the back side of paper. | ||
[Rear Parallel] | Adjusts the position when stapling in parallel on the back side of paper. | ||
[Front Parallel] | Adjusts the position when stapling in parallel on the front side of paper. | ||
Keypad | Used to enter numeric values. | ||
[Clear] | Returns the entered numeric value to "0". | ||
[Set] | Sets the numeric value entered using the keypad to the selected setting item. | ||
Remarks | - | ||
Reference | - | ||

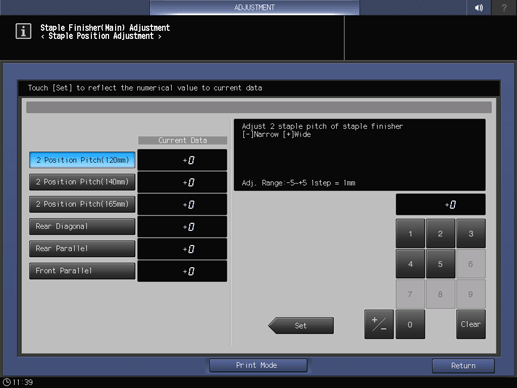

Screen access | Touch panel - [MACHINE] - [Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Main) Adj.] - [Staple Position Adjustment] | ||
Control panel - Utility/Counter - [Administrator Setting] - [System Setting] - [Expert Adjustment] - [Finisher Adjustment] - [Staple Finisher Adjustment] - [Staple Finisher(Main) Adj.] - [Staple Position Adjustment] |
A sample is output.
Standard values

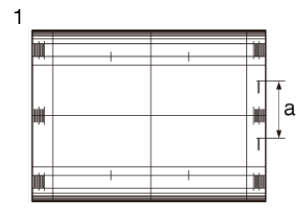

1: 2-position pitch = -3 mm to +3 mm
2: [Rear Diagonal] -3 mm to +3 mm

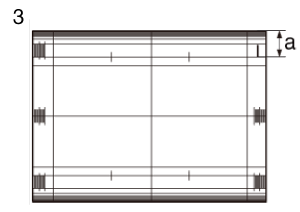

3: [Rear Parallel] -3 mm to +3 mm

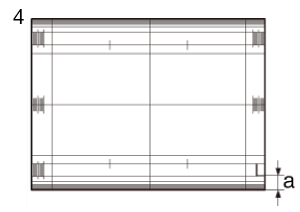

4: [Front Parallel] -3 mm to +3 mm
Use [+ / -] to select the plus or minus of the numeric value. To change [Current Data], press [Set].
2-position pitch / [Rear Diagonal]...[Adj. Range:-5~+5 1step = 1mm]
[Rear Parallel] / [Front Parallel][Adj. Range:-3~+3 1step = 1mm]
