Trim Printing
What Is Trim Printing?
If Trimmer Unit TU-510 is mounted, trimming will be applied to copy jobs or print jobs in the same way as printing.
You can register advanced settings for the trimming function in advance as a trimmer profile. You can recall and apply the trimmer profiles as and when needed to streamline the performing of trimming operations. For details about trimmer profiles, refer to What Is the [Trimmer Profile]?.

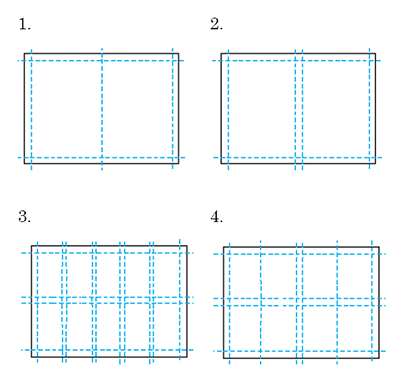

The 4 types of trimming mode operation are detailed below.
Mode | Overview | Usable Paper Size | Finished Size Post-Cutting | Usable Paper Weight | Trays Applicable for Output | |
|---|---|---|---|---|---|---|
1 | [Four Edge Trim] | Trim the 4 edges of the paper. *Can also be used to apply creases. | (Width) 140.0 mm to 330.2 mm, (Length) 153.0 mm to 1300.0 mm/(Width) 5.51" to 13.0", (Length) 6.02" to 51.18" To set [Perforation]: (widthwise) 140.0 mm to 330.2 mm, (lengthwise) 153.0 mm to 487.7 mm/(widthwise) 5.51" to 13.0", (lengthwise) 6.02" to 19.20" | (Width) 120.0 mm to 314.2 mm, (Length) 133.0 mm to 1280.0 mm/(Width) 4.72" to 12.37", (Length) 5.24" to 50.39" | 50 g/m2 to 400 g/m2/14 lb Bond to 106 lb Bond | Trimmer Unit TU-510 Secondary (sub) tray, subsequent finisher (Finishing paper length is from 133.0 mm/5.24" to 488.0 mm/19.21") (If [Perforation] is set, subsequent finisher cannot be used.) |
2 | [Multiple Cutting] | Cut into 2 sheets. | (Width) 299.4 mm to 330.2 mm, (Length) 440.0 mm to 487.5 mm/(Width) 11.79" to 13.0", (Length) 17.32" to 19.19" | A4 (297.0 mm e 210.0 mm/11.69" e 8.27") or Letter (279.4 mm e 215.9 mm/11.71" e 8.5") | 62 g/m2 to 256 g/m2/16 lb Bond to 68 lb Bond | Trimmer Unit TU-510 Secondary (sub) tray, subsequent finisher |
3 | [Card Cutting] | Cut sheets into business card size. | (Width) 287.0 mm to 330.2 mm, (Length) 370.0 mm to 457.2 mm/(Width) 11.30" to 13.0", (Length) 14.57" to 18.0" | (Width) 85.0 mm to 92.0 mm, (Length) 50.0 mm to 56.0 mm/(Width) 3.35" to 3.62", (Length) 1.97" to 2.20" | 177 g/m2 to 300 g/m2/48 lb Bond to 81 lb Bond | Trimmer Unit TU-510 Card tray |
4 | [Advanced Setting] | Set trim and crease positions. | (Width) 210.0 mm to 330.2 mm, (Length) 143.0 mm to 487.7 mm/(Width) 8.27" to 13.0", (Length) 5.63" to 19.20" | (Width) 85.0 mm/3.35" or higher, (Length) 133.0 mm/5.24" | 106 g/m2 to 300 g/m2/29 lb Bond to 81 lb Bond (Coated paper: 136 g/m2 to 300 g/m2/37 lb Bond to 81 lb Bond) | Trimmer Unit TU-510 Secondary (sub) tray |
Recommendations
Use trim printing in circumstances such as these.
- When you want to create catalogs, book covers, pamphlets, etc.
- When you want to create various types of card (business cards, etc.)
- When you want to trim to special paper sizes
Reference
- For details about paper sizes, refer to What Is the [Trimmer Profile]?.
- For details about the trimming mode, refer to [Create].
Target Jobs
Hold jobs, copy jobs, print jobs
Target Tools
Touch panel (machine store jobs) | Printer driver | AccurioPro Print Manager | Machine hot folder | AccurioPro Hot Folder |
|---|---|---|---|---|
. | . | . | . | e |
What Is Trimmer Unit TU-510?
Mount Trimmer Unit TU-510 to the system to trim paper before printing.
Mount the options detailed below inside Trimmer Unit TU-510 to provide further special trimming functionality.
Options | Description |
|---|---|
Creaser Unit CR-102 | Adds creases (with a downward convex shape) to the paper. Creases can be added when performing four edge trimming or when trimming using advanced settings. |
Creaser Unit CR-103 | Adds creases (with a upward convex shape) to the paper. Creases can be added when performing four edge trimming or when trimming using advanced settings. |
Perforation Unit PE-101 | Adds a perforation to the paper. Perforation can be added when performing four edge trimming or when trimming using advanced settings. |
Perforation Unit PE-102 | |
Trimmer Unit TU-504 | Trims unnecessary sections of the multi-faced paper. Trim the paper bleed in the horizontal direction relative to the paper feed direction. |
Job Separator JS-507 | Trim paper to business card size. Trimmer Unit TU-504 is necessary to trim to business card size. |
Banner Unit MK-764 | Allows you to perform banner paper trimming. Mount this option to output the banner paper to a post-processing device. If you try to perform processing on banner paper using Trimmer Unit TU-510 without having this option mounted, an error message will display, and the settings cannot be configured. |
Trim Printing Workflow
1
Create and register trimmer profiles.
Access | Transition to Profile Creation Screen |
|---|---|
From the system’s Touch panel | Touch panel - [MACHINE] - [Trimmer Profile] - [Create] |
From the browser | With Web Connection Web Connection - Login Screen - [FinisherManager] - [TU-510 Profile Manager] - [Create] For details about how to access Web Connection, refer to Web Connection (the Machine). |
With Web Utilities Web Utilities - Main Page - [Finisher Manager] - [TU-510 Profile Manager] - [Create] For details about how to access Web Utilities, refer to Web Utilities. |
For details about how to create and register profiles, refer to [Create] or Creating and Editing Trimmer Profiles.
2
Apply a registered trimmer profile to the job.
Select a trimmer profile using the functions below and apply it when printing.

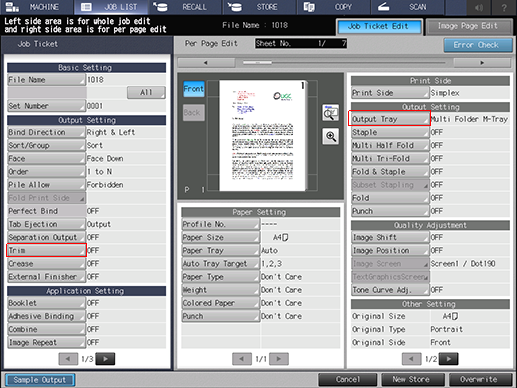

[Trim] function from [JOB LIST] | To apply a trimmer profile to a hold job, select [JOB LIST] and then [Trim], and then select the appropriate trimmer profile. For details, refer to [Trim]. |

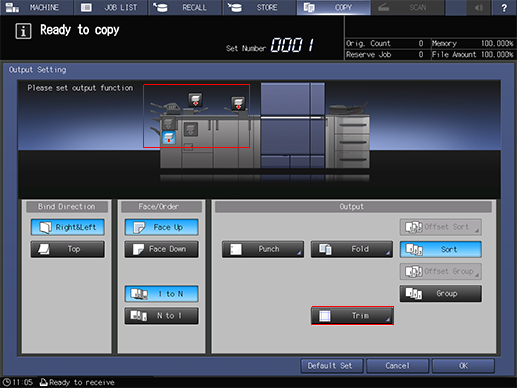

[Output Setting] function from [COPY] | To apply a trimmer profile to a copy job, select [Output Setting] and then [Trim], and then select the appropriate trimmer profile. For details, refer to [Trim]. |

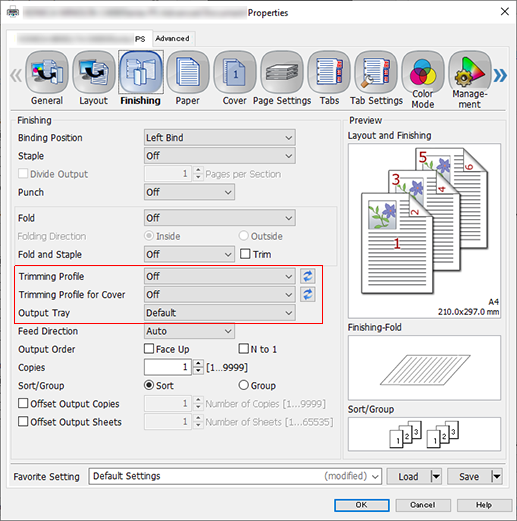

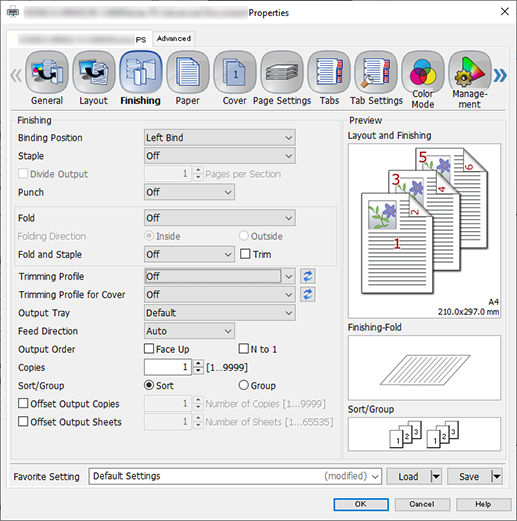

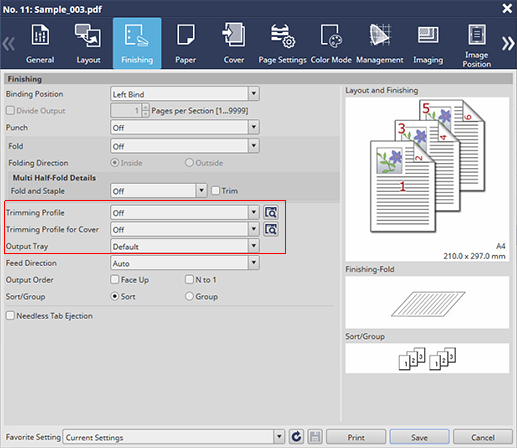

[Finishing] function from PS Plug-in Driver | To apply a trimmer profile to a print job, select the [Finishing] tab, and then configure the appropriate trimmer profile settings. For details, refer to [Trimming Profile] and [Trimming Profile for Cover]. |
[Finishing] function from AccurioPro Print Manager | To apply a trimmer profile to a print job, select the [Finishing] tab, and then configure the appropriate trimmer profile settings. For details, refer to [Trimming Profile] and [Trimming Profile for Cover]. |
3
Print the job(s).
The trimming is performed and the job output.
Creating and Editing Trimmer Profiles
To create or edit a trimmer profile, you can do so using the system’s Touch panel, or by accessing [FinisherManager] from Web Connection or Web Utilities, and doing so from there. The method for creating the profiles is the same.
This section provides an example of how to create a trimmer profile after gaining access from Web Connection.
1
Launch the browser.
For details about Web Connection operating environment, refer to What Is a Web Connection?.
2

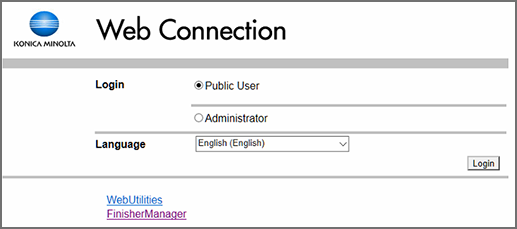

Enter "http://<IP address of the machine>/wcd/top.xml", and press [Enter].
For example, if the IP address of the machine is 192.168.1.20, enter "http://192.168.1.20/wcd/top.xml".
3
Click [FinisherManager].
4

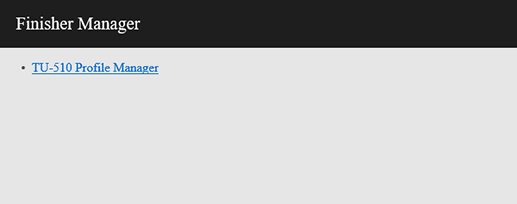

Click [TU-510 Profile Manager].
For details about the settings below, refer to each of the items below.
Four Edge Trim (Crease)
This section describes how to configure trimmer profiles for four edge trimming (crease).
1

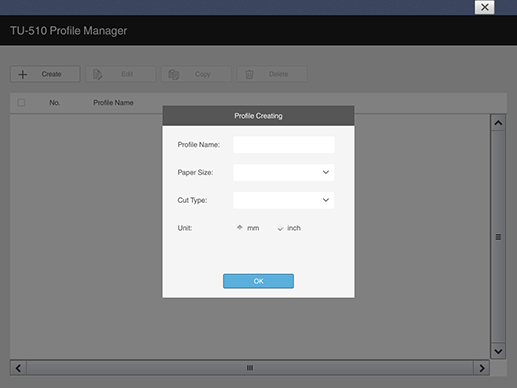

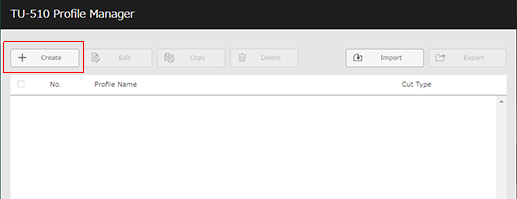

Click [Create].
2

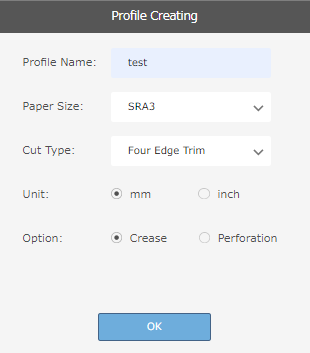

Configure and set the [Profile Name], [Paper Size], [Cut Type] ([Four Edge Trim]), [Unit], and [Option] ([Crease]).
Usable Paper Size: (Width) 140.0 mm to 330.2 mm, (Length) 153.0 mm to 1300.0 mm/(Width) 5.51" to 13.0", (Length) 6.02" to 51.18"
3

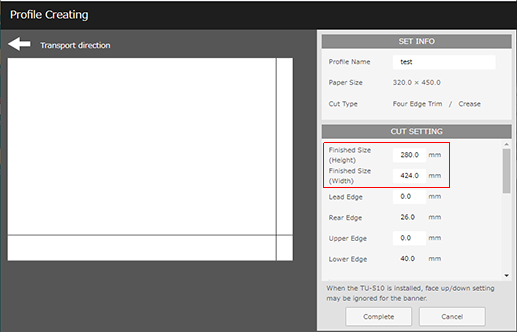

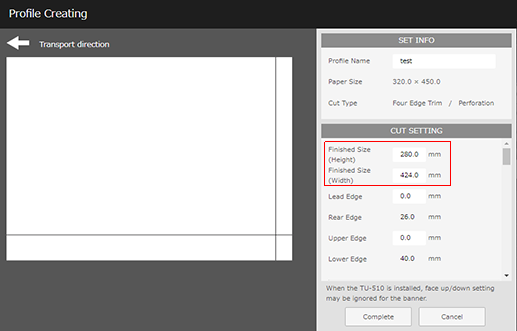

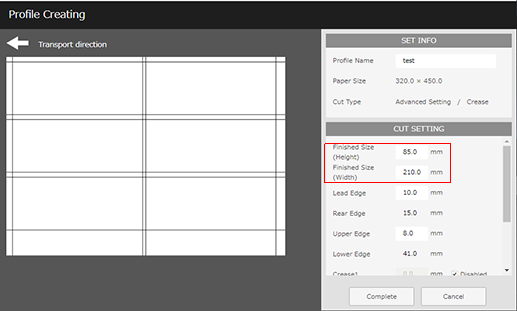

Enter the [Finished Size(Height)] and [Finished Size(Width)].
4

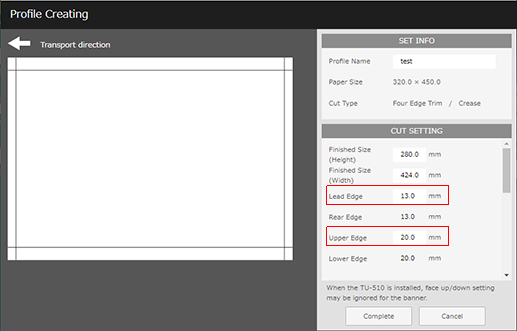

Enter the [Lead Edge] (amount of the lead edge to be cut) and [Upper Edge] (amount of top edge to be cut).
Decide the setting values for [Lead Edge] (C1) and [Upper Edge] (S1) as the starting points for the base points, as shown in the figure. Set the cutting position so that the size of the paper being used is cut to the desired finish size.
There are limits on the setting values for [Finished Size(Height)], [Finished Size(Width)], [Lead Edge], and [Upper Edge]. Check the "Four Edge Trim / Crease Limitations" before configuring the various settings.
An error message will be displayed when a value that does not fall within the applicable range is set, and hence the trimmer profile cannot be created. If an error message is displayed, check the input value or change the paper size being used.

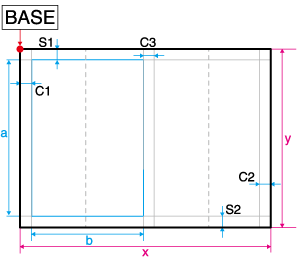

When you enter [Lead Edge] (C1) and [Upper Edge] (S1), [Rear Edge] (C2) and [Lower Edge] (S2) are set automatically. Exceeding the [Rear Edge] and [Lower Edge] limitations will also result in an error. Be sure to take note of the limitations for each of the various setting values.

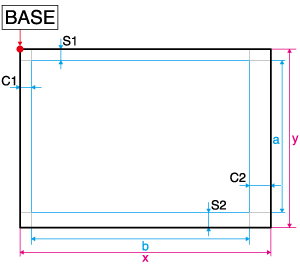

Allowable Paper Sizes | ||
|---|---|---|
x | Paper size (horizontal width) | 153.0 mm to 1300.0 mm/6.024" to 51.181" |
y | Paper size (vertical width) | 140.0 mm to 330.2 mm/5.512" to 13.0" |
Four Edge Trim / Crease Limitations | ||
|---|---|---|
a | [Finished Size(Height)] | 120.0 mm/4.724" or more |
b | [Finished Size(Width)] | 133.0 mm/5.236" or more |
C1 | [Lead Edge] (amount of lead edge to be cut) | 0 mm/0" (None) or 10.0 mm to 100.0 mm/0.394" to 3.937" |
C2 | [Rear Edge] (amount of rear edge to be cut) | 0 mm/0" (None) or 10.0 mm to 13.0 mm/0.394" to 0.512" |
S1 | [Upper Edge] (amount of top edge to be cut) | 0 mm/0" (none) or 8.0 mm to 26.0 mm/0.315" to 1.024" Set the difference between [Upper Edge] (amount of top edge to be cut) and [Lower Edge] (amount of bottom edge to be cut) within 10.0 mm/0.394". Cutting only [Upper Edge] (amount of top edge to be cut) or only [Lower Edge] (amount of bottom edge to be cut) is not possible. |
S2 | [Lower Edge] (amount of bottom edge to be cut) | |
5

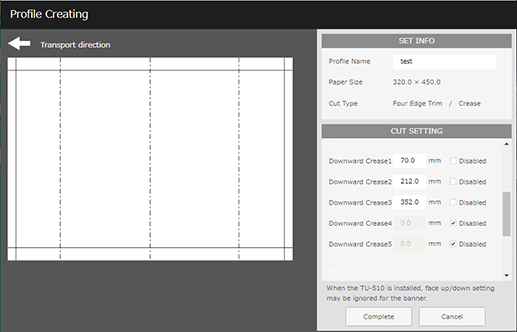

Enter [Downward Crease1] to [Downward Crease5] and [Upward Crease1] to [Upward Crease5] as necessary.
Up to 5 lower convex creases and upper convex creases can be set respectively, depending on the finish size and setting position.
The crease positions are set at 60.0 mm/2.362" or more from the trim area, and the crease intervals at 1.0 mm/0.039" or more.
6
This section shows example settings for [Four Edge Trim / Crease].
Settings Example 1 (Paper Size: SRA3, Units: mm) | |
|---|---|
[Profile Name] | Test1 |
[Paper Size] | 320.0 e 450.0 |
[Cut Type] | Four Edge Trim/Crease |
[Finished Size(Height)] | 280.0 |
[Finished Size(Width)] | 424.0 |
[Lead Edge] | 13.0 |
[Rear Edge] | 13.0 (automatic setting) |
[Upper Edge] | 20.0 |
[Lower Edge] | 20.0 (automatic setting) |
[Downward Crease1] to [Downward Crease5] | Disabled |
[Upward Crease1] to [Upward Crease5] | Disabled |

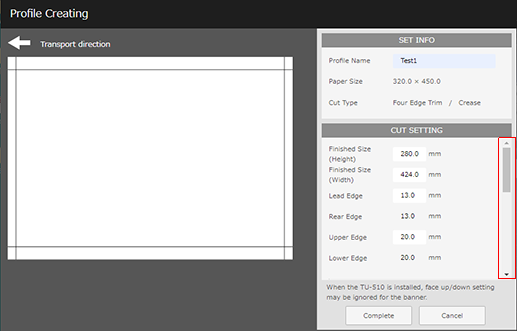

If the item you want to set is not displayed, scroll down the screen with the slider.  | |
Settings Example 2 (Paper Size: SRA3, Units: mm) | |
|---|---|
[Profile Name] | Test2 |
[Paper Size] | 320.0 e 450.0 |
[Cut Type] | Four Edge Trim/Crease |
[Finished Size(Height)] | 280.0 |
[Finished Size(Width)] | 420.0 |
[Lead Edge] | 18.0 |
[Rear Edge] | 12.0 (automatic setting) |
[Upper Edge] | 20.0 |
[Lower Edge] | 20.0 (automatic setting) |
[Downward Crease1] | 70.0 |
[Downward Crease2] | 210.0 |
[Downward Crease3] | 350.0 |
[Downward Crease4] to [Downward Crease5] | Disabled |
[Upward Crease1] | 140.0 |
[Upward Crease2] | 280.0 |
[Upward Crease3] to [Upward Crease5] | Disabled |
If the item you want to set is not displayed, scroll down the screen with the slider.  | |
Settings Example 3 (Paper Size: A4 SEF, Units: mm) | |
|---|---|
[Profile Name] | Test3 |
[Paper Size] | 210.0 e 297.0 |
[Cut Type] | Four Edge Trim/Crease |
[Finished Size(Height)] | 194.0 |
[Finished Size(Width)] | 271.0 |
[Lead Edge] | 13.0 |
[Rear Edge] | 13.0 (automatic setting) |
[Upper Edge] | 8.0 |
[Lower Edge] | 8.0 (automatic setting) |
[Downward Crease1] | 90.0 |
[Downward Crease2] | 180.0 |
[Downward Crease3] to [Downward Crease5] | Disabled |
[Upward Crease1] to [Upward Crease5] | Disabled |
If the item you want to set is not displayed, scroll down the screen with the slider.  | |
7
Click [Complete].
The created trimmer profile is saved.
Four Edge Trim (Perforation)
This section describes how to configure trimmer profiles for four edge trimming (perforation).
1
Click [Create].
2

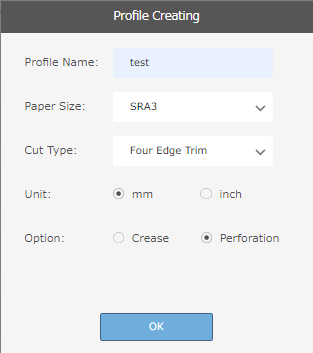

Configure and set the [Profile Name], [Paper Size], [Cut Type] ([Four Edge Trim]), [Unit], and [Option] ([Perforation]).
Usable Paper Size: (Width) 140.0 mm to 330.2 mm, (Length) 153.0 mm to 487.7 mm/(Width) 5.51" to 13.0", (Length) 6.02" to 19.20"
3
Enter the [Finished Size(Height)] and [Finished Size(Width)].
4

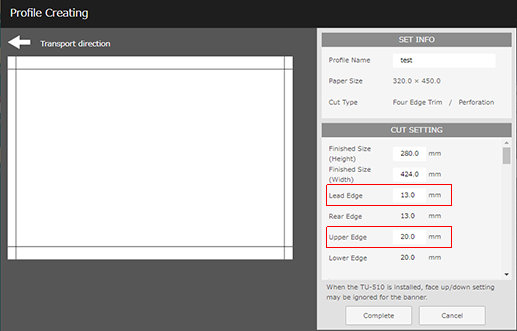

Enter the [Lead Edge] (amount of the lead edge to be cut) and [Upper Edge] (amount of top edge to be cut).
Decide the setting values for [Lead Edge] (C1) and [Upper Edge] (S1) as the starting points for the base points, as shown in the figure. Set the cutting position so that the size of the paper being used is cut to the desired finish size.
There are limits on the setting values for [Finished Size(Height)], [Finished Size(Width)], [Lead Edge], and [Upper Edge]. Check the "Four Edge Trim / Perforation Limitations" before configuring the various settings.
An error message will be displayed when a value that does not fall within the applicable range is set, and hence the trimmer profile cannot be created. If an error message is displayed, check the input value or change the paper size being used.
When you enter [Lead Edge] (C1) and [Upper Edge] (S1), [Rear Edge] (C2) and [Lower Edge] (S2) are set automatically. Exceeding the [Rear Edge] and [Lower Edge] limitations will also result in an error. Be sure to take note of the limitations for each of the various setting values.
Allowable Paper Sizes | ||
|---|---|---|
x | Paper size (horizontal width) | 153.0 mm to 487.7 mm/6.024" to 19.20" |
y | Paper size (vertical width) | 140.0 mm to 330.2 mm/5.512" to 13.0" |
Four Edge Trim/Perforation Limitations | ||
|---|---|---|
a | [Finished Size(Height)] | 120.0 mm/4.724" or more |
b | [Finished Size(Width)] | 133.0 mm/5.236" or more |
C1 | [Lead Edge] (amount of lead edge to be cut) | 0 mm/0" (None) or 10.0 mm to 100.0 mm/0.394" to 3.937" |
C2 | [Rear Edge] (amount of rear edge to be cut) | 0 mm/0" (None) or 10.0 mm to 13.0 mm/0.394" to 0.512" |
S1 | [Upper Edge] (amount of top edge to be cut) | 0 mm/0" (none) or 8.0 mm to 26.0 mm/0.315" to 1.024" Set the difference between [Upper Edge] (amount of top edge to be cut) and [Lower Edge] (amount of bottom edge to be cut) within 10.0 mm/0.394". Cutting only [Upper Edge] (amount of top edge to be cut) or only [Lower Edge] (amount of bottom edge to be cut) is not possible. |
S2 | [Lower Edge] (amount of bottom edge to be cut) | |
5

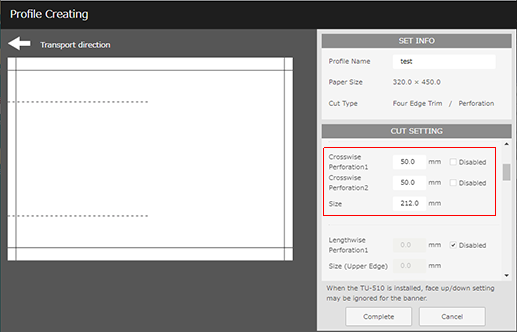

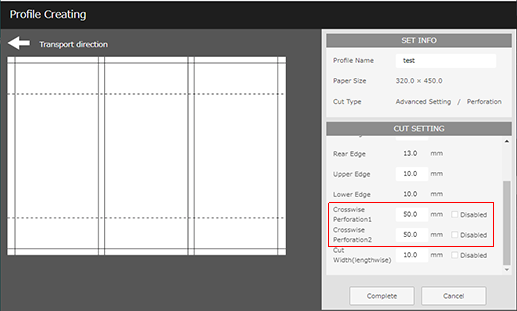

Set [Crosswise Perforation1] and [Crosswise Perforation2], [Size] as necessary.
The perforation positions are set at 30.0 mm/1.181" or more from the trim area, and the perforation intervals at 120.0 mm/4.724" or more.
Set [Size] at 30.0 mm/1.181"or more.
6

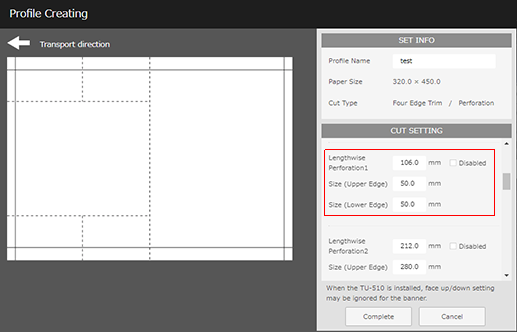

Enter [Lengthwise Perforation1] to [Lengthwise Perforation10], or [Size (Upper Edge)] and [Size (Lower Edge)], as necessary.
Up to 10 perforations can be set, depending on the finish size and setting position.
The perforation positions are set at 30.0 mm/1.181" or more from the trim area, and the perforation intervals at 30.0 mm/1.181" or more.
Set [Size (Upper Edge)] and [Size (Lower Edge)] at 30.0 mm/1.181"or more.
7
This section shows example settings for [Four Edge Trim / Perforation].
Settings Example 1 (Paper Size: SRA3, Units: mm) | |
|---|---|
[Profile Name] | Test1 |
[Paper Size] | 320.0 e 450.0 |
[Cut Type] | Four Edge Trim/Perforation |
[Finished Size(Height)] | 280.0 |
[Finished Size(Width)] | 424.0 |
[Lead Edge] | 13.0 |
[Rear Edge] | 13.0 (automatic setting) |
[Upper Edge] | 20.0 |
[Lower Edge] | 20.0 (automatic setting) |
[Crosswise Perforation1] | Disabled |
[Crosswise Perforation2] | Disabled |
[Lengthwise Perforation1] to [Lengthwise Perforation10] | Disabled |
If the item you want to set is not displayed, scroll down the screen with the slider.  | |
Settings Example 2 (Paper Size: SRA3, Units: mm) | |
|---|---|
[Profile Name] | Test2 |
[Paper Size] | 320.0 e 450.0 |
[Cut Type] | Four Edge Trim/Perforation |
[Finished Size(Height)] | 280.0 |
[Finished Size(Width)] | 424.0 |
[Lead Edge] | 13.0 |
[Rear Edge] | 13.0 (automatic setting) |
[Upper Edge] | 20.0 |
[Lower Edge] | 20.0 (automatic setting) |
[Crosswise Perforation1] | 50.0 |
[Crosswise Perforation2] | 50.0 |
[Size] | 212.0 |
[Lengthwise Perforation1] | 106.0 |
[Size (Upper Edge)] | 50.0 |
[Size (Lower Edge)] | 50.0 |
[Lengthwise Perforation2] | 212.0 |
[Size (Upper Edge)] | 280.0 |
[Size (Lower Edge)] | 0.0 |
[Lengthwise Perforation3] to [Lengthwise Perforation10] | Disabled |
If the item you want to set is not displayed, scroll down the screen with the slider.  | |
Settings Example 3 (Paper Size: A4 SEF, Units: mm) | |
|---|---|
[Profile Name] | Test3 |
[Paper Size] | 210.0 e 297.0 |
[Cut Type] | Four Edge Trim/Perforation |
[Finished Size(Height)] | 194.0 |
[Finished Size(Width)] | 270.0 |
[Lead Edge] | 14.0 |
[Rear Edge] | 13.0 (automatic setting) |
[Upper Edge] | 8.0 |
[Lower Edge] | 8.0 (automatic setting) |
[Crosswise Perforation1] | 30.0 |
[Crosswise Perforation2] | 30.0 |
[Size] | 283.0 |
[Lengthwise Perforation1] | 60.0 |
[Size (Upper Edge)] | 30.0 |
[Size (Lower Edge)] | 30.0 |
[Lengthwise Perforation2] | 120.0 |
[Size (Upper Edge)] | 30.0 |
[Size (Lower Edge)] | 30.0 |
[Lengthwise Perforation3] | 180.0 |
[Size (Upper Edge)] | 30.0 |
[Size (Lower Edge)] | 30.0 |
[Lengthwise Perforation4] to [Lengthwise Perforation10] | Disabled |
If the item you want to set is not displayed, scroll down the screen with the slider.  | |
8
Click [Complete].
The created trimmer profile is saved.
Multiple Cutting
This section describes how to configure trimmer profiles for multiple cutting.
1
Click [Create].
2

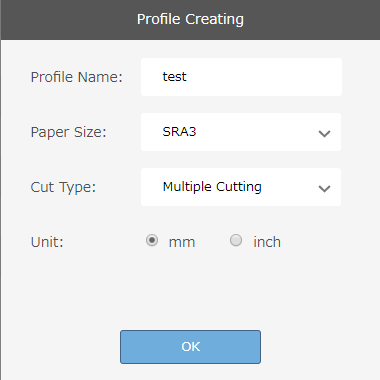

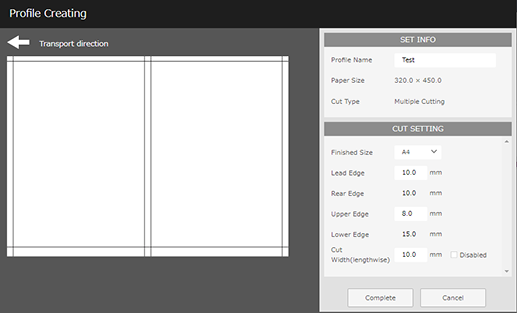

Configure and set the [Profile Name], [Paper Size], [Cut Type] ([Multiple Cutting]) and [Unit] variables.
Usable Paper Size: (Width) 299.4 mm to 330.2 mm, (Length) 440.0 mm to 487.5 mm/(Width) 11.79" to 13.0", (Length) 17.32" to 19.19"
3
Select [Finished Size] (A4 or LTR).
4

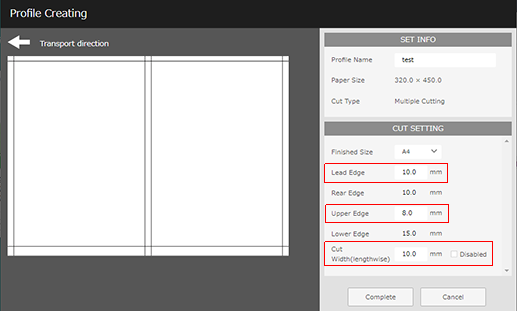

Enter the [Lead Edge] (amount of the lead edge to be cut), [Upper Edge] (amount of top edge to be cut), and [Cut Width(lengthwise)].

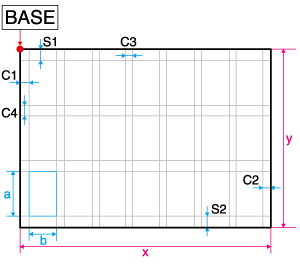

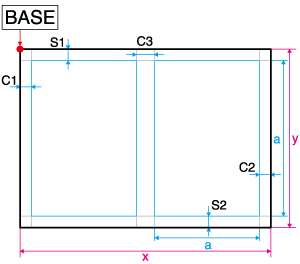

Decide the setting values for [Lead Edge] (C1), [Upper Edge] (S1), and [Cut Width(lengthwise)] (C3) as the starting points for the base points, as shown in the figure. Set the cutting position so that the size of the paper being used is cut to the desired finish size.
There are limits on the setting values for [Lead Edge], [Upper Edge], and [Cut Width(lengthwise)]. Check the "Multiple Cutting Limitations" before configuring the various settings.
An error message will be displayed when a value that does not fall within the applicable range is set, and hence the trimmer profile cannot be created. If an error message is displayed, check the input value or change the paper size being used.
When you enter [Lead Edge] (C1) and [Upper Edge] (S1), [Rear Edge] (C2) and [Lower Edge] (S2) are set automatically. Exceeding the [Rear Edge] and [Lower Edge] limitations will also result in an error. Be sure to take note of the limitations for each of the various setting values.
Allowable Paper Sizes | ||
|---|---|---|
x | Paper size (horizontal width) | 440.0 mm to 487.5 mm/17.323" to 19.193" |
y | Paper size (vertical width) | 299.4 mm to 330.2 mm/11.787" to 13.0" |
Multiple Cutting Limitations | ||
|---|---|---|
a | [Finished Size] | A4 (297.0 mm e 210.0 mm/11.69" e 8.27") or Letter (279.4 mm e 215.9 mm/11" e 8.5") |
C1 | [Lead Edge] (amount of lead edge to be cut) | 10.0 mm to 13.0 mm/0.394" to 0.512" |
C2 | [Rear Edge] (amount of rear edge to be cut) | 10.0 mm to 13.0 mm/0.394" to 0.512" |
C3 | [Cut Width(lengthwise)] | 0 mm/0" (None) or 5.0 mm to 13.0 mm/0.197" to 0.512" |
S1 | [Upper Edge] (amount of top edge to be cut) | 8.0 mm to 26.0 mm/0.315" to 1.024" Set the difference between [Upper Edge] (amount of top edge to be cut) and [Lower Edge] (amount of bottom edge to be cut) within 10.0 mm/0.394". Cutting only [Upper Edge] (amount of top edge to be cut) or only [Lower Edge] (amount of bottom edge to be cut) is not possible. |
S2 | [Lower Edge] (amount of bottom edge to be cut) | |
5
This section shows example settings for [Multiple Cutting].
Settings Example 1 (Paper Size: SRA3, Units: mm) | |
|---|---|
[Profile Name] | Test |
[Paper Size] | 320.0 e 450.0 |
[Cut Type] | Multiple Cutting |
[Finished Size] | A4 |
[Lead Edge] | 10.0 |
[Rear Edge] | 10.0 (automatic setting) |
[Upper Edge] | 8.0 |
[Lower Edge] | 15.0 (automatic setting) |
[Cut Width(lengthwise)] | 10.0 |
 | |
6
Click [Complete].
The created trimmer profile is saved.
Card Cutting
This section describes how to configure trimmer profiles for card cutting.
1
Click [Create].
2

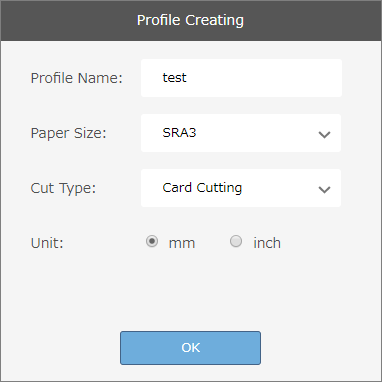

Configure and set the [Profile Name], [Paper Size], [Cut Type] ([Card Cutting]) and [Unit] variables.
Usable Paper Size: (Width) 287.0 mm to 330.2 mm, (Length) 370.0 mm to 457.2 mm/(Width) 11.30" to 13.0", (Length) 14.57" to 18.0"
3
Enter the [Finished Size(Height)] and [Finished Size(Width)].
4
Enter the [Lead Edge] (amount of the lead edge to be cut), [Upper Edge] (amount of top edge to be cut), and [Cut Width(lengthwise)].
Decide the setting values for [Lead Edge] (C1), [Upper Edge] (S1), and [Cut Width(lengthwise)] (C3) as the starting points for the base points, as shown in the figure. Set the cutting position so that the size of the paper being used is cut to the desired finish size.
There are limits on the setting values for [Finished Size(Height)], [Finished Size(Width)], [Lead Edge], [Upper Edge], and [Cut Width(lengthwise)]. Check the "Card Cutting Limitations" before configuring the various settings.
An error message will be displayed when a value that does not fall within the applicable range is set, and hence the trimmer profile cannot be created. If an error message is displayed, check the setting values or change the paper size being used.
When you enter [Lead Edge] (C1) and [Upper Edge] (S1), [Rear Edge] (C2) and [Lower Edge] (S2) are set automatically. Exceeding the [Rear Edge] and [Lower Edge] limitations will also result in an error. Be sure to take note of the limitations for each of the various setting values.
[Cut Width(crosswise)] (C4) is fixed at 8 mm.
If the paper size is SRA3 or 12 e 18, the maximum number of cards that can be created is 3 e 7 rows = 21 cards.
Allowable Paper Sizes | ||
|---|---|---|
x | Paper size (horizontal width) | 370.0 mm to 457.2 mm/14.567" to 18.0" |
y | Paper size (vertical width) | 287.0 mm to 330.2 mm/11.299" to 13.0" |

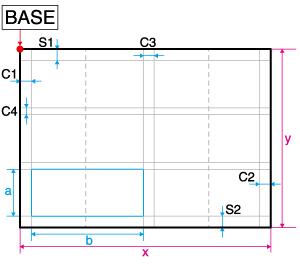

Card Cutting Limitations | ||
|---|---|---|
a | [Finished Size(Height)] | 85.0 mm to 92.0 mm/3.346" to 3.622" |
b | [Finished Size(Width)] | 50.0 mm to 56.0 mm/1.969" to 2.205" |
C1 | [Lead Edge] (amount of lead edge to be cut) | 10.0 mm to 13.0 mm/0.394" to 0.512" |
C2 | [Rear Edge] (amount of rear edge to be cut) | 10.0 mm to 13.0 mm/0.394" to 0.512" |
C3 | [Cut Width(lengthwise)] | 0 mm/0" (None) or 5.0 mm to 13.0 mm/0.197" to 0.512" |
C4 | [Cut Width(crosswise)] | 8.0 mm/0.315" (Fixed) |
S1 | [Upper Edge] (amount of top edge to be cut) | 8.0 mm to 26.0 mm/0.315" to 1.024" Set the difference between [Upper Edge] (amount of top edge to be cut) and [Lower Edge] (amount of bottom edge to be cut) within 10.0 mm/0.394". Cutting only [Upper Edge] (amount of top edge to be cut) or only [Lower Edge] (amount of bottom edge to be cut) is not possible. |
S2 | [Lower Edge] (amount of bottom edge to be cut) | |
5
This section shows example settings for [Card Cutting].

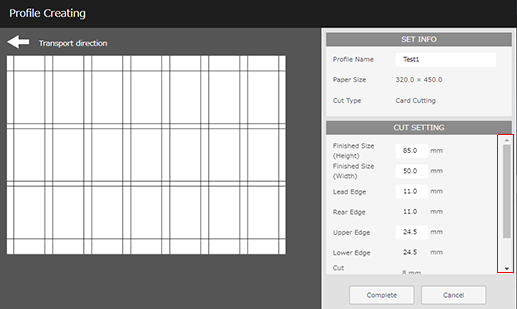

Settings Example 1 (Paper Size: SRA3, Units: mm) | |
|---|---|
[Profile Name] | Test1 |
[Paper Size] | 320.0 e 450.0 |
[Cut Type] | Card Cutting |
[Finished Size(Height)] | 85.0 |
[Finished Size(Width)] | 50.0 |
[Lead Edge] | 11.0 |
[Rear Edge] | 11.0 (automatic setting) |
[Upper Edge] | 24.5 |
[Lower Edge] | 24.5 (automatic setting) |
[Cut Width(crosswise)] | 8 (Fixed) |
[Cut Width(lengthwise)] | 13.0 |
If the item you want to set is not displayed, scroll down the screen with the slider.  | |

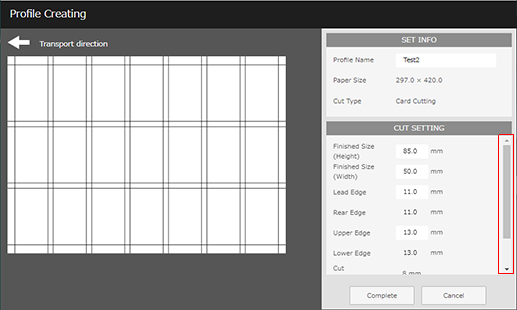

Settings Example 2 (Paper Size: A3, Units: mm) | |
|---|---|
[Profile Name] | Test2 |
[Paper Size] | 297.0 e 420.0 |
[Cut Type] | Card Cutting |
[Finished Size(Height)] | 85.0 |
[Finished Size(Width)] | 50.0 |
[Lead Edge] | 11.0 |
[Rear Edge] | 11.0 (automatic setting) |
[Upper Edge] | 13.0 |
[Lower Edge] | 13.0 (automatic setting) |
[Cut Width(crosswise)] | 8 (Fixed) |
[Cut Width(lengthwise)] | 8.0 |
If the item you want to set is not displayed, scroll down the screen with the slider.  | |
6
Click [Complete].
The created trimmer profile is saved.
Advanced Setting (Crease)
This section describes how to configure custom trimmer profiles.
1
Select [Create].
2

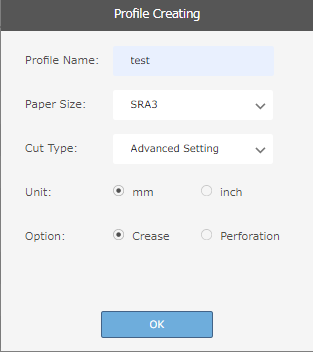

Configure and set the [Profile Name], [Paper Size], [Cut Type] ([Advanced Setting]), [Unit], and [Option] ([Crease]).
Usable Paper Size: (Width) 210.0 mm to 330.2 mm, (Length) 143.0 mm to 487.7 mm/(Width) 8.27" to 13.0", (Length) 5.63" to 19.20"
3
Enter the [Finished Size(Height)] and [Finished Size(Width)].
4
Enter the [Lead Edge] (amount of the lead edge to be cut), [Upper Edge] (amount of top edge to be cut), and [Cut Width(lengthwise)].
Decide the setting values for [Lead Edge] (C1), [Upper Edge] (S1), and [Cut Width(lengthwise)] (C3) as the starting points for the base points, as shown in the figure. Set the cutting position so that the size of the paper being used is cut to the desired finish size.
There are limits on the setting values for [Finished Size(Height)], [Finished Size(Width)], [Lead Edge], [Upper Edge], and [Cut Width(lengthwise)]. Check the "Advanced Setting/Crease Limitations" before configuring the various settings.
An error message will be displayed when a value that does not fall within the applicable range is set, and hence the trimmer profile cannot be created. If an error message is displayed, check the setting values or change the paper size being used.
When you enter [Lead Edge] (C1) and [Upper Edge] (S1), [Rear Edge] (C2) and [Lower Edge] (S2) are set automatically. Exceeding the [Rear Edge] and [Lower Edge] limitations will also result in an error. Be sure to take note of the limitations for each of the various setting values.
[Cut Width(crosswise)] (C4) is fixed at 8 mm.
Allowable Paper Sizes | ||
|---|---|---|
x | Paper size (horizontal width) | 143.0 mm to 487.7 mm/5.63" to 19.201" |
y | Paper size (vertical width) | 210.0 mm to 330.2 mm/8.268" to 13.0" |
Advanced Setting/Crease Limitations | ||
|---|---|---|
a | [Finished Size(Height)] | 85.0 mm/3.346" or higher |
b | [Finished Size(Width)] | 133.0 mm/5.236" or higher |
C1 | [Lead Edge] (amount of lead edge to be cut) | 10.0 mm to 13.0 mm/0.394" to 0.512" |
C2 | [Rear Edge] (amount of rear edge to be cut) | 10.0 mm to 13.0 mm/0.394" to 0.512" |
C3 | [Cut Width(lengthwise)] | 0 mm/0" (None) or 5.0 mm to 13.0 mm/0.197" to 0.512" |
C4 | [Cut Width(crosswise)] | 8.0 mm/0.315" (Fixed) |
S1 | [Upper Edge] (amount of top edge to be cut) | 8.0 mm to 26.0 mm/0.315" to 1.024" Set the difference between [Upper Edge] (amount of top edge to be cut) and [Lower Edge] (amount of bottom edge to be cut) within 10.0 mm/0.394". Cutting only [Upper Edge] (amount of top edge to be cut) or only [Lower Edge] (amount of bottom edge to be cut) is not possible. |
S2 | [Lower Edge] (amount of bottom edge to be cut) | |
5
Enter [Crease1] to [Crease5] as necessary.
Up to 5 creases can be set, depending on the finish size (number).
To cut in the transverse direction and have 2 impositions, you can set the position of [Crease1] and [Crease2], for a maximum of 2 crease positions.
To cut in the transverse direction and have 3 impositions, the only crease position that can be set is [Crease1].
The crease positions are set at 60.0 mm/2.362" or more from the trim area, and the crease intervals at 1.0 mm/0.039" or more.
6
This section shows example settings for [Advanced Setting / Crease].

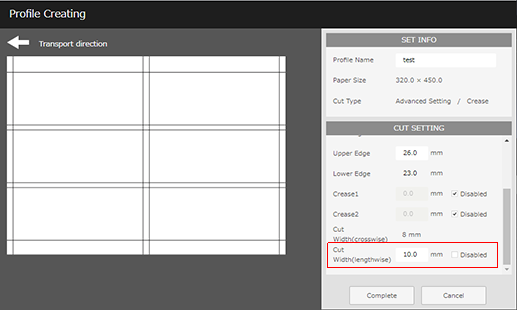

Settings Example 1 (Paper Size: SRA3, Units: mm) | |
|---|---|
[Profile Name] | Test1 |
[Paper Size] | 320.0 e 450.0 |
[Cut Type] | Advanced Setting/Crease |
[Finished Size(Height)] | 85.0 |
[Finished Size(Width)] | 210.0 |
[Lead Edge] | 10.0 |
[Rear Edge] | 15.0 (automatic setting) |
[Upper Edge] | 26.0 |
[Lower Edge] | 23.0 (automatic setting) |
[Crease1], [Crease2] | Disabled |
[Cut Width(crosswise)] | 8 (Fixed) |
[Cut Width(lengthwise)] | 10.0 |
If the item you want to set is not displayed, scroll down the screen with the slider.  | |
Settings Example 2 (Paper Size: A3, Units: mm) | |
|---|---|
[Profile Name] | Test2 |
[Paper Size] | 297.0 e 420.0 |
[Cut Type] | Advanced Setting/Crease |
[Finished Size(Height)] | 85.0 |
[Finished Size(Width)] | 400.0 |
[Lead Edge] | 10.0 |
[Rear Edge] | 10.0 (automatic setting) |
[Upper Edge] | 8.0 |
[Lower Edge] | 18.0 (automatic setting) |
[Crease1] | 60.0 |
[Crease2] | 200.0 |
[Crease3] | 340.0 |
[Crease4], [Crease5] | Disabled |
[Cut Width(crosswise)] | 8 (Fixed) |
[Cut Width(lengthwise)] | Disabled |
If the item you want to set is not displayed, scroll down the screen with the slider.  | |
7
Click on [Complete].
The created trimmer profile is saved.
Advanced Setting (Perforation)
This section describes how to configure custom trimmer profiles.
1
Select [Create].
2

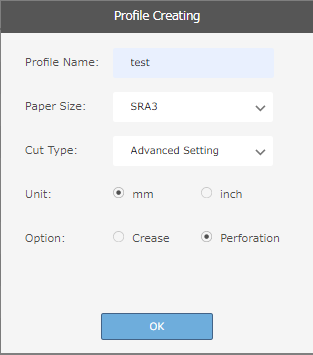

Configure and set the [Profile Name], [Paper Size], [Cut Type] ([Advanced Setting]), [Unit], and [Option] ([Perforation]).
Usable Paper Size: (Width) 210.0 mm to 330.2 mm, (Length) 143.0 mm to 487.7 mm/(Width) 8.27" to 13.0", (Length) 5.63" to 19.20"
3
Enter the [Finished Size(Height)] and [Finished Size(Width)].
4
Enter the [Lead Edge] (amount of the lead edge to be cut), [Upper Edge] (amount of top edge to be cut), and [Cut Width(lengthwise)].
Decide the setting values for [Lead Edge] (C1), [Upper Edge] (S1), and [Cut Width(lengthwise)] (C3) as the starting points for the base points, as shown in the figure. Set the cutting position so that the size of the paper being used is cut to the desired finish size.
There are limits on the setting values for [Finished Size(Height)], [Finished Size(Width)], [Lead Edge], [Upper Edge], and [Cut Width(lengthwise)]. Check the "Advanced Setting/Perforation Limitations" before configuring the various settings.
An error message will be displayed when a value that does not fall within the applicable range is set, and hence the trimmer profile cannot be created. If an error message is displayed, check the setting values or change the paper size being used.
When you enter [Lead Edge] (C1) and [Upper Edge] (S1), [Rear Edge] (C2) and [Lower Edge] (S2) are set automatically. Exceeding the [Rear Edge] and [Lower Edge] limitations will also result in an error. Be sure to take note of the limitations for each of the various setting values.
Allowable Paper Sizes | ||
|---|---|---|
x | Paper size (horizontal width) | 143.0 mm to 487.7 mm/5.63" to 19.201" |
y | Paper size (vertical width) | 210.0 mm to 330.2 mm/8.268" to 13.0" |
Advanced Setting/Perforation Limitations | ||
|---|---|---|
a | [Finished Size(Height)] | 85.0 mm/3.346" or higher |
b | [Finished Size(Width)] | 133.0 mm/5.236" or higher |
C1 | [Lead Edge] (amount of lead edge to be cut) | 10.0 mm to 13.0 mm/0.394" to 0.512" |
C2 | [Rear Edge] (amount of rear edge to be cut) | 10.0 mm to 13.0 mm/0.394" to 0.512" |
C3 | [Cut Width(lengthwise)] | 0 mm/0" (None) or 5.0 mm to 13.0 mm/0.197" to 0.512" |
S1 | [Upper Edge] (amount of top edge to be cut) | 8.0 mm to 26.0 mm/0.315" to 1.024" Set the difference between [Upper Edge] (amount of top edge to be cut) and [Lower Edge] (amount of bottom edge to be cut) within 10.0 mm/0.394". Cutting only [Upper Edge] (amount of top edge to be cut) or only [Lower Edge] (amount of bottom edge to be cut) is not possible. |
S2 | [Lower Edge] (amount of bottom edge to be cut) | |
5
Enter [Crosswise Perforation1] and [Crosswise Perforation2] as necessary.
The perforation positions are set at 30.0 mm/1.181" or more from the trim area, and the perforation intervals at 120.0 mm/4.724" or more.
The length of the transverse perforation is set to the paper size width (it can not be set up halfway through the paper).
6
This section shows example settings for [Advanced Setting / Perforation].
Settings Example 1 (Paper Size: SRA3, Units: mm) | |
|---|---|
[Profile Name] | Test1 |
[Paper Size] | 320.0 e 450.0 |
[Cut Type] | Advanced Setting/Perforation |
[Finished Size(Height)] | 300.0 |
[Finished Size(Width)] | 135.0 |
[Lead Edge] | 12.0 |
[Rear Edge] | 13.0 (automatic setting) |
[Upper Edge] | 10.0 |
[Lower Edge] | 10.0 (automatic setting) |
[Crosswise Perforation1] | Disabled |
[Crosswise Perforation2] | Disabled |
[Cut Width(lengthwise)] | 10.0 |
If the item you want to set is not displayed, scroll down the screen with the slider.  | |
Settings Example 2 (Paper Size: A3, Units: mm) | |
|---|---|
[Profile Name] | Test2 |
[Paper Size] | 297.0 e 420.0 |
[Cut Type] | Advanced Setting/Perforation |
[Finished Size(Height)] | 280.0 |
[Finished Size(Width)] | 400.0 |
[Lead Edge] | 10.0 |
[Rear Edge] | 10.0 (automatic setting) |
[Upper Edge] | 8.0 |
[Lower Edge] | 9.0 (automatic setting) |
[Crosswise Perforation1] | 80.0 |
[Crosswise Perforation2] | 80.0 |
[Cut Width(lengthwise)] | Disabled |
If the item you want to set is not displayed, scroll down the screen with the slider.  | |
7
Click [Complete].
The created trimmer profile is saved.
Accessing Trimming Settings
The 4 functions described in Step 2 on Trim Printing Workflow can be accessed in the ways shown below.
Tips
After selecting a trimmer profile, be sure to also configure the Output Tray settings. Printing will not start until the output destination has not been correctly set. The trays that can be output in the respective trimming modes are as follows:
- [Four Edge Trim] : Secondary (sub) tray of Trimmer Unit TU-510 , subsequent finisher (Finishing paper length is 133.0 mm/5,24" or more, 488.0 mm/19.21" or lower. When [Perforation] is set, the subsequent finisher cannot be used.)
- [Multiple Cutting]: Trimmer Unit TU-510 Secondary (sub) tray
- [Card Cutting]: Trimmer Unit TU-510 Card tray
- [Advanced Setting]: Trimmer Unit TU-510 Secondary (sub) tray
[MACHINE] - [JOB LIST] - [Trim]
[MACHINE] - [JOB LIST] - [Output Tray]
[MACHINE] - [COPY] - [Output Setting] - [Trim]
PS Plug-in Driver - [Finishing]
AccurioPro Print Manager - [Finishing]
Trim Printing Procedure
This section offers an example of how to perform trim printing using PS Plug-in Driver.
Assumed operating environment - OS: Windows 10, Application: Adobe Acrobat Reader DC.
Install the PS Plug-in Driver on a computer.
Mount Image Controller IC-610 and Trimmer Unit TU-510 onto the system.
When setting up the printer driver, make sure you check that none of the previous settings are left in any of the item tabs. If any of the previous settings do remain, make sure you clear them.
NOTICE
- The actual screen displayed may differ depending on the application version or revision, and the environment you are using.
1
Open the file in the application, and click [Print] in the [File] menu.
2
Select the printer to use for printing, and click [Properties].
3
Click the [Finishing] tab, and select the trimmer profile you want to use during printing from the [Trimming Profile] menu list.
After selecting a trimmer profile, also configure the [Output Tray] settings.
Click "
" to update the trimmer profile menu list with the latest information.
4
To trim covers, select the appropriate trimmer profile from the [Trimming Profile for Cover] menu list.
Click "" to update the trimmer profile menu list with the latest information.
5
Enter the [Copies] you want to print on the [Print] screen, and click [Print].
in the upper-right of a page, it turns into
and is registered as a bookmark.
