The following is recommended
Target Jobs
Does not depend on the file format.
Target Tools
Touch panel (machine store jobs) | Printer driver | AccurioPro Print Manager | Machine hot folder | AccurioPro Hot Folder |
---|---|---|---|---|
- | . | . | . | . |
Open the original in the application, and click [Print] in the [File] menu.
Select the printer to use for printing, and click [Properties].

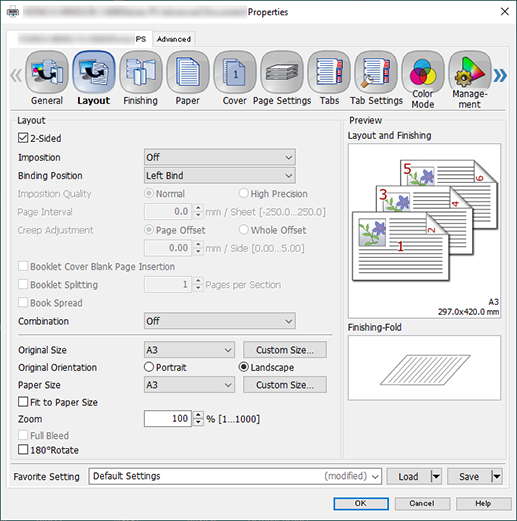

Select the [Layout] tab, and configure the following items.
Item | Setting |
---|---|
[2-Sided] | Add check mark |
[Original Size] | [A3] |
[Original Orientation] | [Landscape] |
[Paper Size] | [A3] |
Select the [Finishing] tab, and set [Fold] to [Z-Fold].
Select the [Paper] tab, and click [Acquire Tray and Paper Data].
A "" is displayed if tray/paper information is successfully obtained.
A "" is displayed if you were unable to acquire tray/paper information. Check to see if parts such as the optional paper feed tray are mounted properly.
In [Paper Tray], select the paper feed tray in which A3 paper (short edge) is set, and click [OK].
Enter the [Copies] you want to print on the [Print] screen, and click [Print].
Open the original in the application, and click [Print] in the [File] menu.
Select the printer to use for printing, and click [Properties].

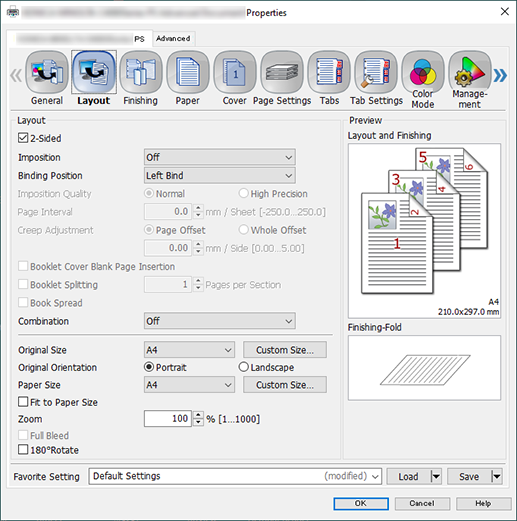

Select the [Layout] tab, and configure the following items.
Item | Setting |
---|---|
[2-Sided] | Add check mark |
[Original Size] | [A4] |
[Original Orientation] | [Portrait] |
[Paper Size] | [A4] |

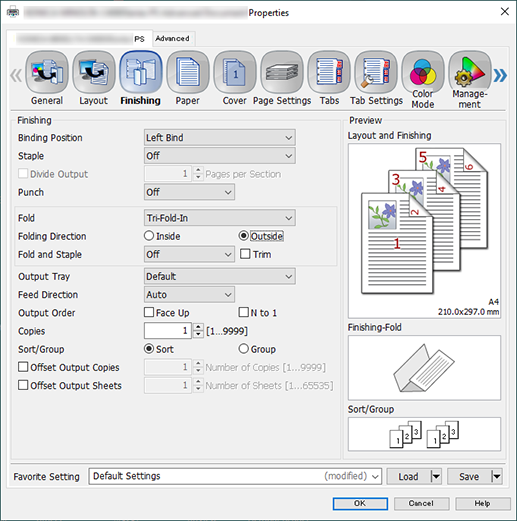

Select the [Finishing] tab, and configure the following items.
Item | Setting Value |
---|---|
[Fold] | [Tri-Fold-In] |
[Folding Direction] | [Outside] |
Select the [Paper] tab, and click [Acquire Tray and Paper Data].
A "" is displayed if tray/paper information is successfully obtained.
A "" is displayed if you were unable to acquire tray/paper information. Check to see if parts such as the optional paper feed tray are mounted properly.
In [Paper Tray], select the paper feed tray in which A4 paper (short edge) is set, and click [OK].
Enter the [Copies] you want to print on the [Print] screen, and click [Print].

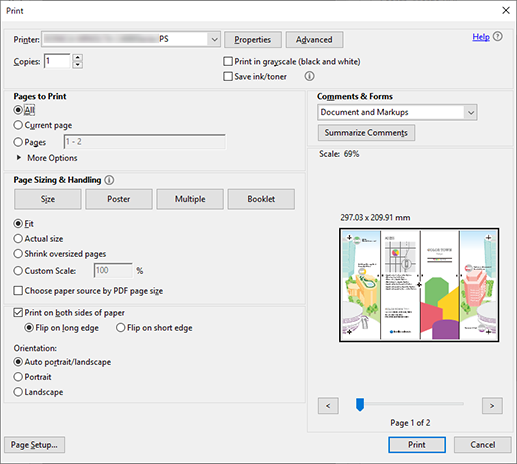

Open the original in the application, and click [Print] in the [File] menu.
Select the printer to use for printing, and click [Properties].
Select the [Layout] tab, and configure the following items.
Item | Setting |
---|---|
[2-Sided] | Add check mark |
[Original Size] | [A3] |
[Original Orientation] | [Landscape] |
[Paper Size] | [A3] |

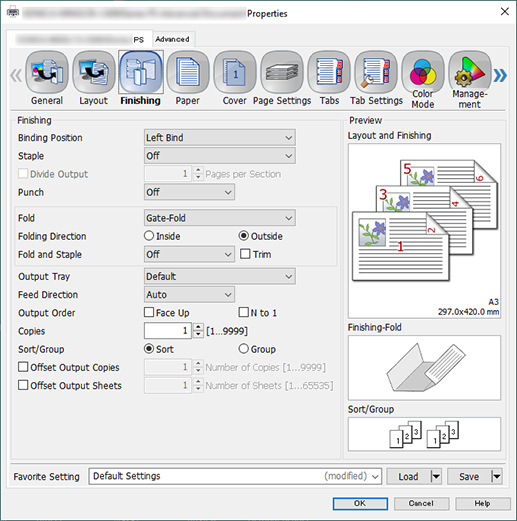

Select the [Finishing] tab, and configure the following items.
Item | Setting Value |
---|---|
[Fold] | [Gate-Fold] |
[Folding Direction] | [Outside] |
Select the [Paper] tab, and click [Acquire Tray and Paper Data].
A "" is displayed if tray/paper information is successfully obtained.
A "" is displayed if you were unable to acquire tray/paper information. Check to see if parts such as the optional paper feed tray are mounted properly.
In [Paper Tray], select the paper feed tray in which A3 paper (short edge) is set, and click [OK].
Enter the [Copies] you want to print on the [Print] screen, and click [Print].
