Loading Paper Into Paper Feeder Unit PF-712/Paper Feeder Unit PF-713
Overview
Load envelopes into the Paper Feeder Unit PF-712/Paper Feeder Unit PF-713.
- Available size
Widthwise 100 mm to 245 mm*, lengthwise 135 mm to 375 mm / Widthwise 3.94" to 9.65", lengthwise 5.31" to 14.76"
*: Available range of Side auxiliary guides: 100 mm to 139 mm / widthwise 3.94" to 5.47"
- Recommended sizes
*: Length of 148 mm / 5.83" or longer with open flaps.
- Load capacity
100 sheets (50 sheets for Square 0 and Square 1 envelopes)
Height difference of envelope top surface at 10 mm / 0.39" or less.
- Unavailable envelopes
- Envelope with film window
- Envelope with double-sided tape and release paper on the flap
- Envelopes can only be loaded into the Lower tray (Tray 3) of the 1st paper feeder unit.
Procedure (For Envelope of Width Less Than 139.7 mm / 5.5")
1
Pull out the tray to load envelopes into.
- The tray cannot be pulled out if the machine is not powered on. Turn the Sub power switch on. For details, refer to Switch on Power Supply of the System..
- Do not pull out multiple trays at once. Doing so may cause the machine to topple over.
2

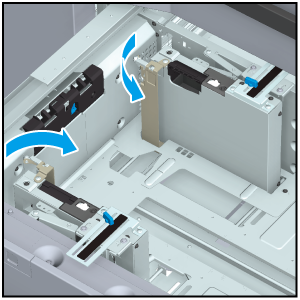

Open each of the
Small size guides of the front and back side
Side guides inward.
3

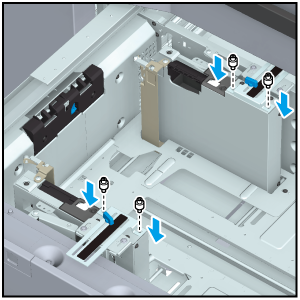

Remove the screws (2 nos. each at 2 locations) and mount the positioning screws (2 nos. each at 2 locations).
4

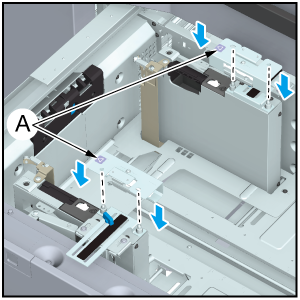

Insert and set the
Side auxiliary guides (2 units) into the positioning screws of the
Side guides.
Attach the guides so that mark A is directed as shown in the figure.
5

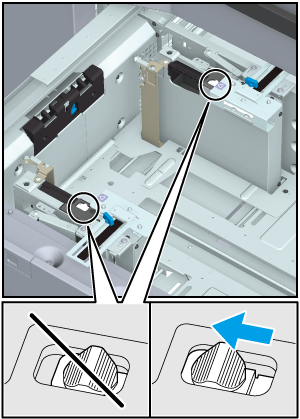

Slide the
Paper holding plate fixing lever (2 locations) to the left, and lock them.
6
Loosen the Side guide lock knobs of Side guides on the tray.
7

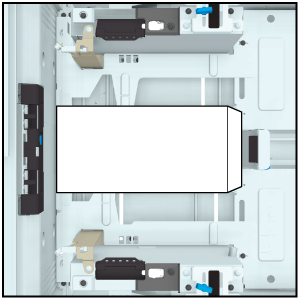

Load envelopes into the tray with the print side facing up.
Load the envelopes against the top of the tray so that the open flaps are on the right side.
8
Place the Side guides of the tray along the envelopes, turn the Side guide lock knobs, and fix it.
9
Place the Rear guide plate of the tray against the envelopes.
10
Firmly push the tray all the way in.
Procedure (For Envelope of Width over 139.7 mm / 5.5")
1
Pull out the tray to load envelopes into.
- The tray cannot be pulled out if the machine is not powered on. Turn the Sub power switch on. For details, refer to Switch on Power Supply of the System..
- Do not pull out multiple trays at once. Doing so may cause the machine to topple over.
2
Load envelopes into the tray with the print side facing up.
Load the envelopes against the top of the tray so that the open flaps are on the right side.
If the Side auxiliary guides is mounted, remove it. You do not need to remove the positioning screws.
3
Place the Side guides of the tray along the envelopes, turn the Side guide lock knobs, and fix it.
4
Place the Rear guide plate of the tray against the envelopes.
5
Firmly push the tray all the way in.
