Before Card Cutting
Overview
To create business cards using Trimmer Unit TU-510, check the Job Separator JS-507 setting in advance.
You need to reposition the Partition plate depending on whether the vertical size of a card is 85 mm or more.
If the setting is not correct, cards may not be normally included in the Card tray.
Procedure (Adjusting the Partition plate in Job Separator JS-507)

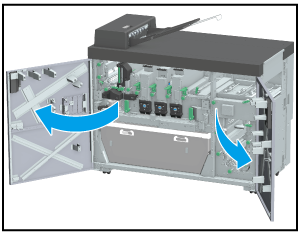

1
Open the
Trimmer unit right side door and
Trimmer unit left side door of the
Trimmer Unit TU-510.

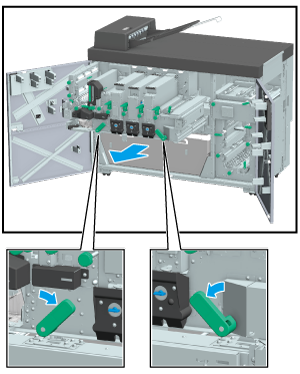

2
Tilt the
Lever [TU4] to the left and the
Lever [TU5] to the right, then pull out the conveyance rack.

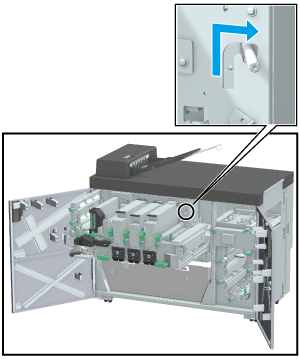

3
Move the
Lock lever [TU6] as shown below, and fix the conveyance rack.

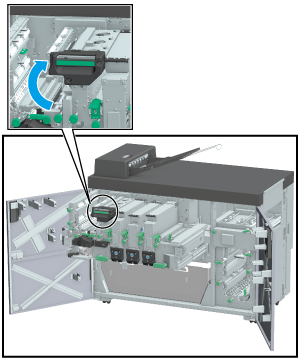

4
Hold the
Lever [TU18], and open the card cutting unit to the upper left.

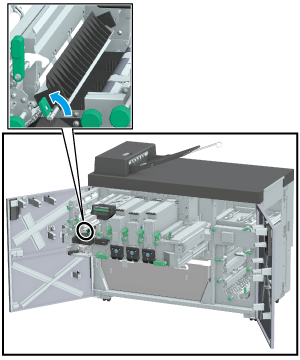

5
Open the
Lever [TU20] the left.

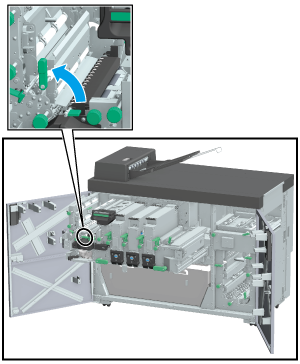

6
Open the
Lever [JS1] the left.

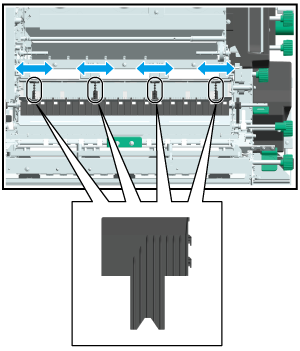

7
Reposition the
Partition plate (four units).
When the card size is widthwise 85 mm / 3.35", move the Partition plate to the center of the paper conveyance path.
When the card size is widthwise 86 mm / 3.39", move the Partition plate to the outside of the paper conveyance path.
8
Close the Lever [JS1] and Lever [TU20]. Then, hold the Lever [TU18], and return the card cutting unit to its home position.
9
Return the Lock lever [TU6] to its home position.
10
Push the conveyance rack in the inside, and return it to its home position. Then, return the Lever [TU4] to the right and the Lever [TU5] to the left.
11
Close the Trimmer unit right side door and Trimmer unit left side door.
Procedure (Adjusting the Partition plate of the Card tray)
1
Open the
Card tray door of
Trimmer Unit TU-510, and pull out the
Card tray.

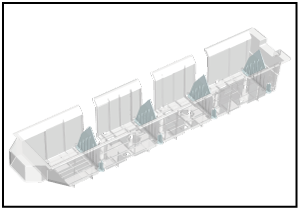

2

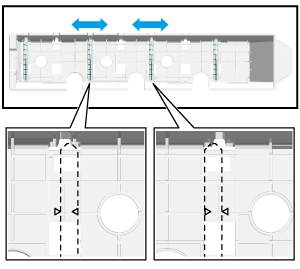

Move two partition plates of the
Partition plate (four plates) of the
Card tray.
When the card size is widthwise 85 mm / 3.35", move the Partition plate to the center of the paper conveyance path (you can only see the + mark outside).
When the card size exceeds widthwise 86 mm / 3.39", move the Partition plate to the outside of the paper conveyance path (you can only see the + mark inside).
3
Return the Card tray to its home position, and close the Card tray door.
