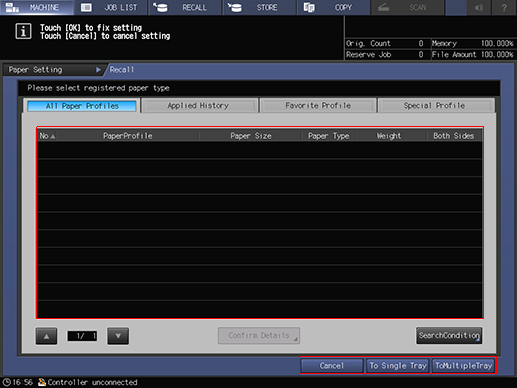

If there is no [Paper Profile] to select, press [Cancel].
For a [Paper Profile] that has [Paper Size] or [Direction] information that is different than the paper loaded in the tray, the option is grayed out (inactive) and you cannot select it.
A motor noise can be heard when the Tray bottom plate lifts after pushing the tray back into its home position. Wait until the motor noise has stopped before pulling out the tray so that the Tray bottom plate rises to the top-most position.
Rotate the Bottom plate fixing knob counterclockwise to loosen it, slide it away from you, and rotate it clockwise in that position to lock it. The Tray bottom plate lowers.

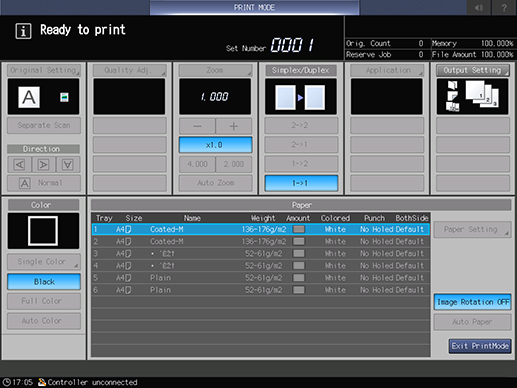

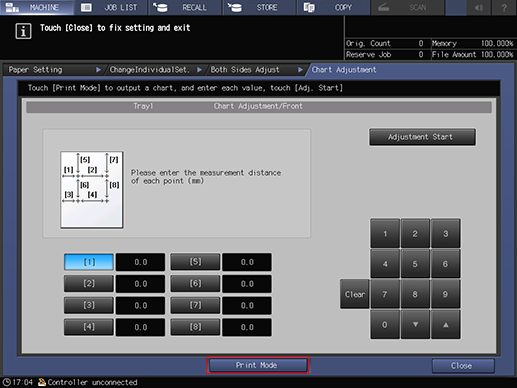

A test chart is output. Output 3 charts.

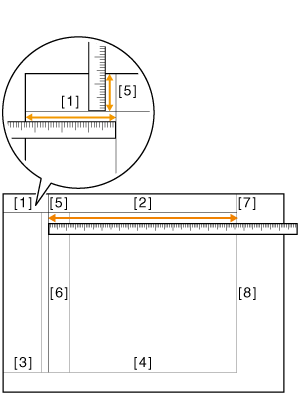

Note down the measured length so that you do not forget it.

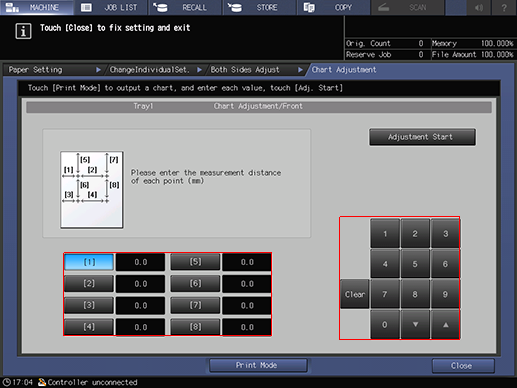

If the lengths of [2], [4], [6], and [8] fall within the range detailed below, press [Close], and then [OK] to complete the adjustment.
If the lengths of [2], [4], [6], and [8] fall outside of the range detailed below, measure the lengths of the remaining [1], [3], [5], and [7], and proceed to Step 12.
[2]: 200 mm -0.3 mm to +0.3 mm
[4]: 200 mm -0.3 mm to +0.3 mm
[6]: 200 mm -0.3 mm to +0.3 mm
[8]: 200 mm -0.3 mm to +0.3 mm
Press [Clear] if you want to reset the values.
Repeat Steps 11 through 14 until the lengths of [2], [4], [6] and [8] match the values in the range detailed below.
[2]: 200 mm -0.3 mm to +0.3 mm
[4]: 200 mm -0.3 mm to +0.3 mm
[6]: 200 mm -0.3 mm to +0.3 mm
[8]: 200 mm -0.3 mm to +0.3 mm

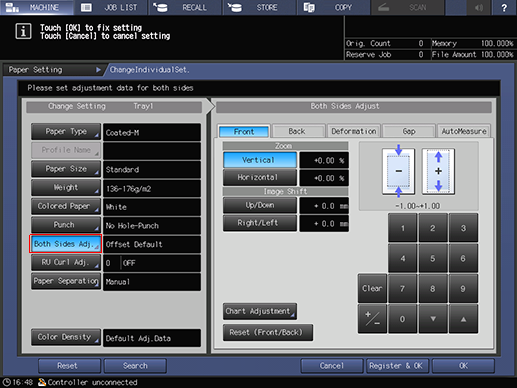

Press [Register & OK] when making adjustments on the front side for a new paper brand name, weight, or size.
