Areas Requiring Cleaning

Overview
Tools Required for Cleaning

Overview

In order to ensure consistently stable output, it is recommended that you check the areas shown below before powering on the machine every day to see if they need cleaning.

Areas to Check

Cleaning Procedure

1. Duplex part

Cleaning the Duplex part

2. Multi Bypass Tray MB-511

Cleaning Multi Bypass Tray MB-511

3. Paper Feeder Unit PF-712 / Paper Feeder Unit PF-713 / Paper Feeder Unit PF-812

Cleaning Paper Feeder Unit PF-712/Paper Feeder Unit PF-713

4. Intelligent Quality Optimizer IQ-501

Cleaning Intelligent Quality Optimizer IQ-501

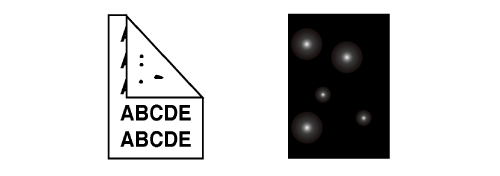

Toner stains or paper dust remaining in the paper feed path can lead to abnormal images.

Tools Required for Cleaning

Make sure you have the following tools ready when cleaning.
  • Cleaning alcohol
  • Soft cloth
  • Lint-free, non-woven cloth
Tips
  • If you have a dedicated toner vacuum cleaner, you can use it when cleaning the Duplex part. 
