When the original image is larger than the actual printing area, set the original image position on paper so that the required part is printed. You can also select a page to apply the setting to.

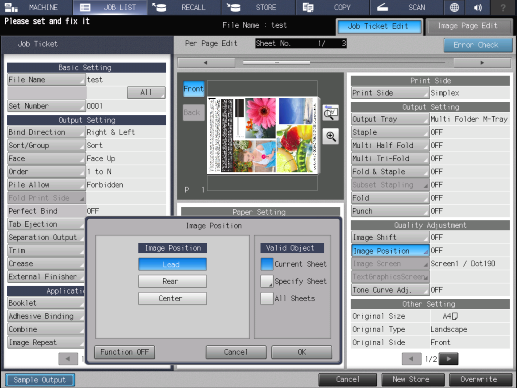

Touch panel - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Image Position]
Touch panel - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Image Position]
Common keys
Key name | Description |
---|---|
[Cancel] | Moves to the previous screen without saving the settings. |
[OK] | Saves the settings and moves to the previous screen. |
[Function OFF] | Turns the function off while maintaining the set information. |
