Specify conditions for [Fold & Staple].
The selectable items vary depending on the optional devices mounted on this system.
Touch panel - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Fold & Staple]
Touch panel - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Fold & Staple]

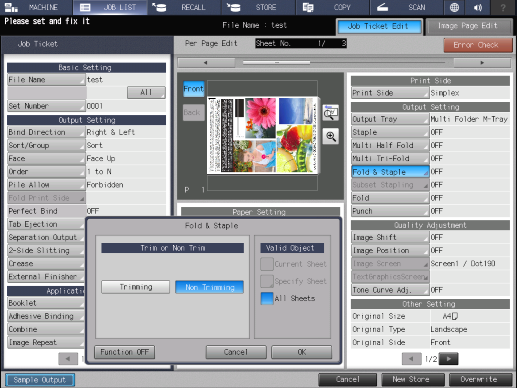

With SaddleStitcher SD-506 mounted:

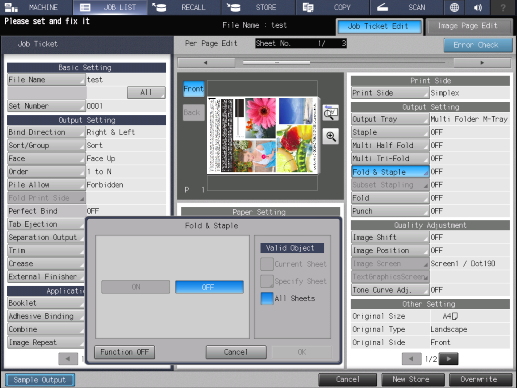

With Saddle Stitcher SD-513 mounted:

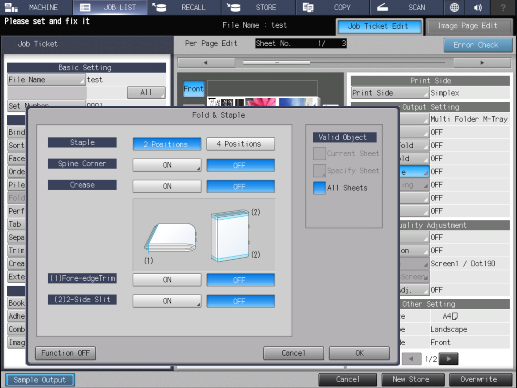

With Finisher FS-541 mounted:
Common keys
Key name | Description |
---|---|
[Cancel] | Moves to the previous screen without saving the settings. |
[OK] | Saves the settings and moves to the previous screen. |
[Function OFF] | Turns the function off while maintaining the set information. |
