Set the stamp printing position.
Select 1 of 9 frames displayed in [Print Pos. Set] as the print position, and adjust the position in [Fine Adjustment].
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Fine Adjustment] | Used to enter numeric values to adjust the print position. | |
[Outside Print] | Prints numbering (sequential numbers) outside the left/right opening. This item is available when [Booklet] or [Adhesive Binding] is selected. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Stamp Numbering] | ||
Touch panel - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Stamp Numbering] | |||
Touch panel - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Stamp Page No.] | |||
Touch panel - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Stamp Page No.] | |||
Touch panel - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Stamp Date/Time] | |||
Touch panel - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Stamp Date/Time] |

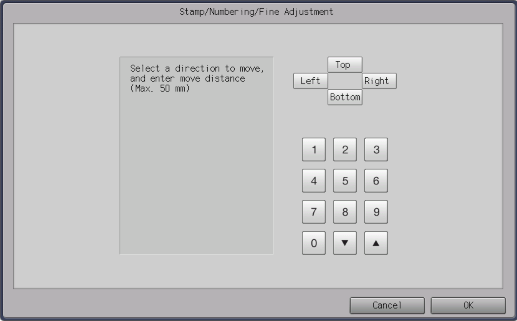

The setting screen is displayed.
The entry field is displayed.
Pressing [,]/[+] increases or decreases the numeric value by 1.
