Adjust the offset inside a booklet.
Correct a difference between the inside and outside margin amounts that occurs when paper is folded in half for binding.
Set the offset method and offset amount (shift amount).
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [Change Creep] | Adjusts the inside offset amount. The entered setting value is displayed in the shift amount adjustment value display field under [Change Creep]. | |
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Booklet] - [Change Creep] | ||
Touch panel - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Booklet] - [Change Creep] |

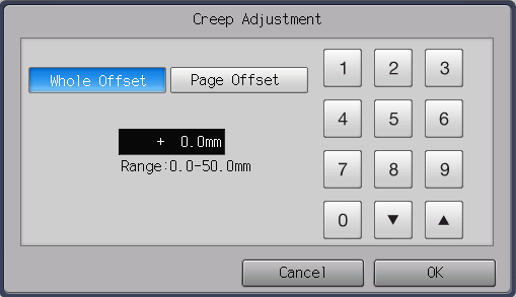

The setting screen is displayed.
[Whole Offset] allows you to adjust the offset amount based on the total number of pages.
[Page Offset] allows you to adjust the offset amount for each page.
[Whole Offset] Range: 0.0 mm to 50.0 mm
[Page Offset] Range: 0.00 mm to 5.00 mm
Pressing [,]/[+] increases or decreases the numeric value in steps of 0.1 mm for [Whole Offset] and 0.01 for [Page Offset].
