Configure the setting to slit both edges of a booklet.
Booklet printing is not available when
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | Saddle Stitcher SD-513 with Trimmer Unit TU-503 mounted | ||
Required items | - | ||
Setting items | [ON] | Slits both edges of a booklet. | |
[OFF] | Does not slit both edges of a booklet. | ||
Remarks | - | ||
Reference | - | ||

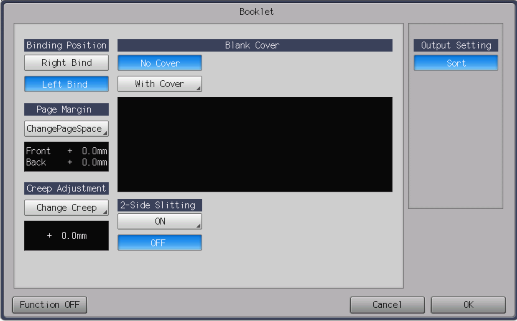

Screen access | Touch panel - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Booklet] | ||
Touch panel - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Booklet] |

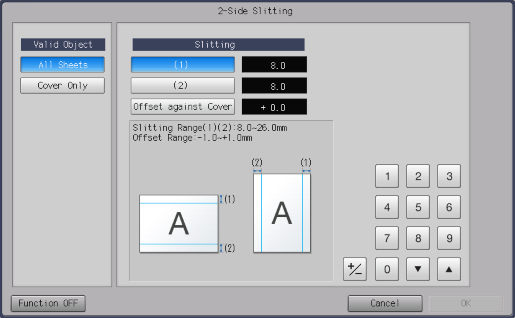

The setting screen is displayed.
Range: 8.0 mm to 26.0 mm
Pressing [,]/[+] increases or decreases the numeric value in steps of 0.1 mm.
Use [+ / -] to set the plus or minus of the numeric value.
When the slitting amount is different between [(1)] and [(2)] by 10.0 mm or more, its value cannot be entered.
Range: -1.0 mm to 1.0 mm
Pressing [,]/[+] increases or decreases the numeric value in steps of 0.1 mm.
