Arbitrarily adjust the space between 2 images, and set the binding margin (margin for binding).
Select the image side to set the binding margin.
Adhesive binding is not available when
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||
Setting items | [ChangePageSpace] | Sets the space between 2 images. | |
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Adhesive Binding] - [ChangePageSpace] | ||
Touch panel - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Adhesive Binding] - [ChangePageSpace] | |||
Touch panel - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Image Repeat] - [ChangePageSpace] | |||
Touch panel - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Image Repeat] - [ChangePageSpace] |

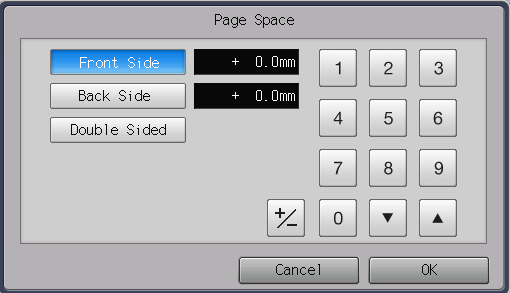

The setting screen is displayed.
[Front Side]: Adjusts the image position of [Front Side].
[Back Side]: Adjusts the image position of [Back Side].
[Double Sided]: Simultaneously adjusts the shift amounts of [Front Side] and [Back Side].
Range: -250.0 mm to 250.0 mm
Pressing [,]/[+] increases or decreases the numeric value in steps of 0.1 mm.
Use [+ / -] to set the plus or minus of the numeric value.
