Set the number of punch holes and the punch position.
The available items vary depending on the optional devices mounted on this system.

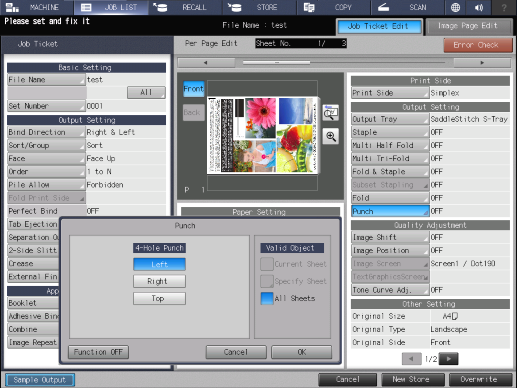

Touch panel - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Punch]
Touch panel - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Punch]
With FoldingUnit FD-503/Finisher FS-541 mounted
Inch area:
Metric area:
4-Hole Punch for Sweden: Available only for Sweden.
Common keys
Key name | Description |
---|---|
[Cancel] | Moves to the previous screen without saving the settings. |
[OK] | Saves the settings and moves to the previous screen. |
[Function OFF] | Turns the function off while maintaining the set information. |
