Set the paper size type for printing.
Category | Print Workflow, Copy / Scan | ||
Location | Machine | Touch Panel | |
Printer driver | - | ||
Application | - | ||
Required options | - | ||
Required items | - | ||

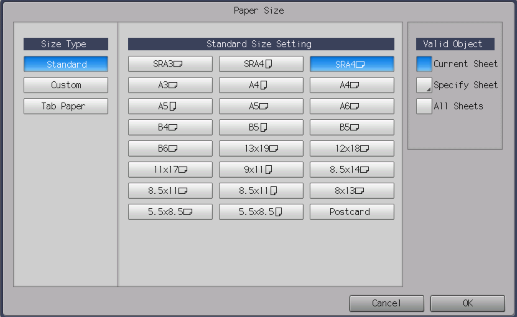

Setting items | [Standard] | Sets a standard paper size. | |
[Custom] | Sets a custom paper size. | ||

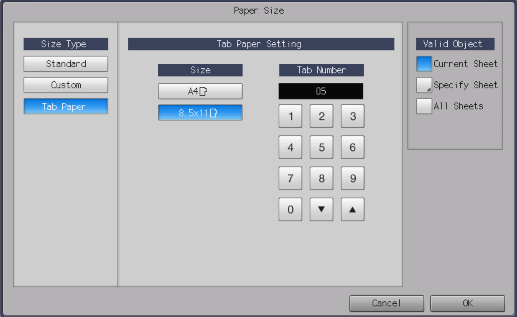

[Tab Paper] | Sets a tab paper size. | ||
Remarks | - | ||
Reference | - | ||
Screen access | Touch panel - [JOB LIST] - [Hold Job] - [Job Ticket] - [Job Ticket Edit] - [Paper Size] | ||
Touch panel - [JOB LIST] - [Hold Job] - [Page Edit] - [Job Ticket Edit] - [Paper Size] |

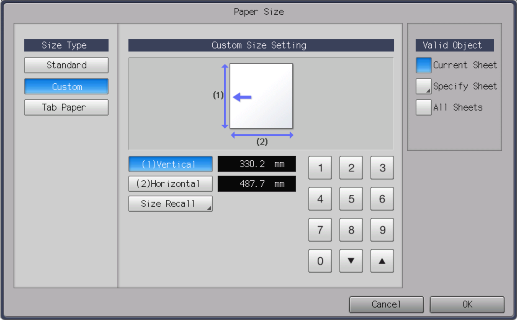

Range: [(1)Vertical]: 100 mm to 330.2 mm, [(2)Horizontal]: 148 mm to 487.7 mm
Pressing [,]/[+] increases or decreases the numeric value in steps of 0.1 mm.
To use the custom size registered in this system, press [Size Recall]. For details, refer to [Custom Size Setting].
Default: 5
Range: 1 to 15
Pressing [,]/[+] increases or decreases the numeric value by 1.
