Paper output extension tray

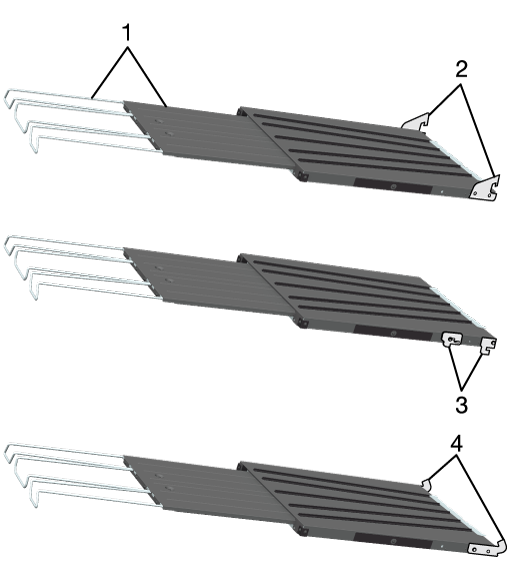

No. | Name | Description |
---|---|---|
1 | Tray extension | Prevents banner paper from falling from output extension tray. |
2 | Brackets | Used when attaching to Output Tray OT-512. |
3 | Brackets | Used when attaching to Relay Unit RU-518m. |
Name | Banner Output Tray Unit MK-761 | |
Applicable unit | Relay Unit RU-518m / Output Tray OT-512 | |
Function | Banner paper printing | |
Paper type | Plain paper, Fine, Color Specific, Coated-G, Coated-M | |
Banner paper size | Widthwise 100 mm to 330.2 mm, lengthwise 487.8 mm to 1,300 mm / Widthwise 3.94" to 13", lengthwise 19.2" to 51.18" *Printing onto banner paper with a width shorter than 279 mm / 10.98" (widthwise) may not be carried out accurately depending on the environmental conditions or the paper type used. | |
Banner paper weight | 128 g/m2 to 300 g/m2 / 34 lb Bond to 81 lb Bond | |
Normal paper mode | Face Up, Straight Exit only | |
Tray capacity | Relay Unit RU-518m: Lengthwise 1,200 mm / 47.24" or smaller paper (excluding Coated paper): 10 sheets Lengthwise 1,201 mm / 47.28" or larger paper (excluding Coated paper): 1 sheet*1 Coated paper: 1 sheet*2 Output Tray OT-512: Paper of lengthwise 489 mm to 762 mm / Lengthwise 19.25" to 30"*3 128 g/m2 to 135 g/m2 / 34 lb Bond to 36 lb Bond: 300 sheets 136 g/m2 to 175 g/m2 / 37 lb Bond to 46 lb Bond: 230 sheets 176 g/m2 to 216 g/m2 / 47 lb Bond to 57 lb Bond: 180 sheets 217 g/m2 to 256 g/m2 / 58 lb Bond to 68 lb Bond: 150 sheets 257 g/m2 to 300 g/m2 / 69 lb Bond to 81 lb Bond: 120 sheets Lengthwise 763 mm / 30.04" or larger paper*1*3 128 g/m2 to 135 g/m2 / 34 lb Bond to 36 lb Bond: 100 sheets 136 g/m2 to 175 g/m2 / 37 lb Bond to 46 lb Bond: 80 sheets 176 g/m2 to 216 g/m2 / 47 lb Bond to 57 lb Bond: 60 sheets 217 g/m2 to 256 g/m2 / 58 lb Bond to 68 lb Bond: 50 sheets 257 g/m2 to 300 g/m2 / 69 lb Bond to 81 lb Bond: 40 sheets *1: In the case of lengthwise 1,201 mm / 47.28" or larger paper, place identical paper on the tray. *2: If 1 identical coated sheet is placed in the tray, up to 10 sheets can be stacked on top. *3: In the case of coated paper, place 1 sheet of identical coated paper in the tray. | |
Dimensions | When housed: 528 mm (W) e 346 mm (D) e 28.5 mm (H) / 20.79" (W) e 13.62" (D) e 1.12" (H) When extended: 1,054 mm (W) e 346 mm (D) e 28.5 mm (H) / 41.5" (W) e 13.62" (D) e 1.12" (H) | |
Weight | 2.0 kg / 4.41 lb |
