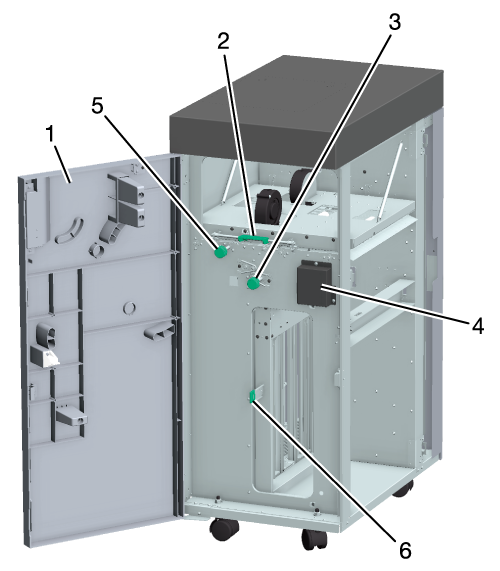

No. | Name | Description |
---|---|---|
1 | Relay unit front door | When clearing a paper jam, open the door and remove the paper. |
2 | Lever [RU1] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
3 | Knob [RU2] | When clearing a paper jam, turn the knob to feed the paper through. |
4 | Jam position display | The location of the paper jam is indicated by a LED light. |
5 | Knob [RU3] | When clearing a paper jam, turn the knob to the right to feed the paper. |
6 | Lever [RU4] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
Name | Relay Unit RU-510 | |
Type | Relay conveyance unit with 2-sheet stacked invert function | |
Function | 2-sheet stacked invert conveyance | Inverts the paper after stacking in 2-sheet stacks and conveys to post-processing device during simplex output. |
1-sheet invert conveyance | Inverts the paper and conveys to post-processing device during simplex output. | |
Straight conveyor | In the case of face-up output or duplex output, paper is conveyed without inverting it. | |
Conveyance speed | 150 sides/min. (A4 v, 8.5 e 11 v) | |
Paper Size | Standard: SRA3 w, A3 w, B4 w, A4 w/v, SRA4 w/v, B5 w/v, A5 w/v, Foolscap*, 13 e 19 w, 12 e 18 w, 11 e 17 w, 8.5 e 14 w, 8.5 e 11 w/v, 5.5 e 8.5 w/v, 9 e 11 v, 8K w, 16K w/v Custom: Straight conveyor Widthwise 95 mm to 331 mm, lengthwise 133 mm to 1,300 mm / Widthwise 3.74" to 13.03", lengthwise 5.24" to 51.18" 1-sheet invert conveyance/2-sheet invert conveyance Widthwise 95 mm to 331 mm, lengthwise 133 mm to 488 mm / Widthwise 3.74" to 13.03", lengthwise 5.24" to 19.21" Wide paper Tab paper *: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes. | |
Paper type | Recommended paper for machine | |
Paper weight | Straight delivery: 40 g/m2 to 450 g/m2 / 11 lb Bond to 119 lb Bond 1-sheet invert conveyance: 40 g/m2 to 350 g/m2 / 11 lb Bond to 93 lb Bond 2-sheet stacked invert conveyance: 40 g/m2 to 256 g/m2 / 11 lb Bond to 68 lb Bond | |
Dimensions | 410 mm (W) e 656 mm (D) e 1,020 mm (H) / 16.14" (W) e 25.83" (D) e 40.16" (H) | |
Weight | Approx. 35 kg / 77.16 lb | |
Power | 24/5 VDC | |
Maximum power consumption | 79 W |
