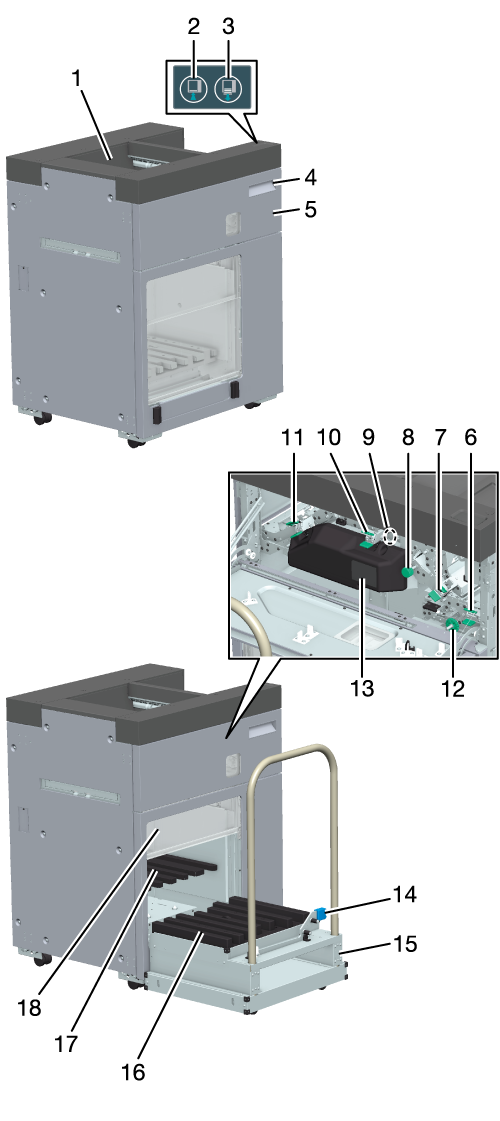

No. | Name | Description |
---|---|---|
1 | Secondary (sub) tray | Ejects paper without Offset. |
2 | Storage button | Press when housing the Output Tray. |
3 | Eject button | Press when removing paper in Stacker tray. |
4 | Upper Door Handle | Used when opening Top door. |
5 | Top door | When clearing a paper jam, open the door and remove the paper. |
6 | Lever [LS1] | When clearing a paper jam, hold the lever, open the cover and remove paper. |
7 | Lever [LS2] | When clearing a paper jam, hold the lever, open the cover and remove paper. |
8 | Knob [LS3] | When clearing a paper jam, turn the knob to feed the paper through. |
9 | Knob [LS4] | When clearing a paper jam, turn the knob to feed the paper through. |
10 | Lever [LS5] | When clearing a paper jam, hold the lever, open the cover and remove paper. |
11 | Lever [LS6] | When clearing a paper jam, hold the lever, open the cover and remove paper. |
12 | Knob | When clearing a paper jam, turn the knob to feed the paper through. |
13 | Jam position display | The location of the paper jam is indicated by a LED light. |
14 | Paper stopper | Paper collapse is prevented by holding the paper down. |
15 | Carriage | Paper is conveyed for each Output Tray. |
16 | Output Tray | Receives paper from Main tray, and outputs it outside the system. |
17 | Stacker tray (Main tray) | Stacks papers without Offset, or after Offset. |
18 | Output Paper Gate | Open when removing the stacked paper. |
Name | Large Capacity Stacker LS-507 | |
Type | Grip conveyor type horizontal stack device (maximum 2 connections allowed) | |
Function | Sort, Group, Offset Sort, Offset Group, Through-path | |
Tray 1 (Main tray) / Tray 2 (Output Tray) | Paper size | Standard: SRA3 w, A3 w, B4 w, SRA4 w/v, A4 w/v, B5 v, A5 v, 13 e 19 w, 12 e 18 w, 11 e 17 w, 9 e 11 v, 8.5 e 14 w, 8.5 e 11 w/v, 5.5 e 8.5 v, 7.25 e 10.5 v, Foolscap*, 8K w, 16K v Custom: Widthwise 210 mm to 330.2 mm, lengthwise 139 mm to 487.7 mm / Widthwise 8.27" to 13", lengthwise 5.47" to 19.2" Tab paper: A4T v, 8.5 e 11T v (Tabs 1 to 15. However, tap 4 and 10 are not available for use) (In case of tab paper, offset is not allowed) *: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes. |
Paper weight | 50 g/m2 to 450 g/m2 / 13 lb Bond to 119 lb Bond | |
Tray capacity | 3,000 sheets Load height Paper of which the length in the paper feed direction is 194 mm / 7.64" or more: 310 mm / 12.2" Paper of which the length in the paper feed direction is 194 mm / 7.64" or less: 230 mm / 9.06" | |
Secondary (sub) tray | Paper size | Standard: SRA3 w, A3 w, B4 w, SRA4 w/v, A4 w/v, B5 w/v, A5 w/v, B6 w, A6 w, 13 e 19 w, 12 e 18 w, 11 e 17 w, 9 e 11 v, 8.5 e 14 w, 8.5 e 11 w/v, 5.5 e 8.5 v, 7.25 e 10.5 w/v, Foolscap* , 8K w, 16K v Custom: Widthwise 95 mm to 330.2 mm, lengthwise 139 mm to 487.7 mm / Widthwise 3.74" to 13", lengthwise 5.47" to 19.2" Fixed tab paper (back edge of tab during output is not guaranteed) Wide paper, envelope *: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes. |
Paper weight | 40 g/m2 to 450 g/m2 / 11 lb Bond to 119 lb Bond | |
Tray capacity | Load height: 28 mm / 1.1" | |
Through (Bypass) | Paper size | Standard: SRA3 w, A3 w, B4 w, SRA4 w/v, A4 w/v, B5 w/v, A5 w/v, B6 w, A6 w, 13 e 19 w, 12 e 18 w, 11 e 17 w, 9 e 11 v, 8.5 e 14 w, 8.5 e 11 w/v, 5.5 e 8.5 v, 7.25 e 10.5 w/v, Foolscap* , 8K w, 16K v Custom: Widthwise 95 mm to 330.2 mm, lengthwise 139 mm to 1,300 mm / Widthwise 3.74" to 13", lengthwise 5.47" to 51.18" Fixed tab paper (back edge of tab during output is not guaranteed) Wide paper, envelope *: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes. |
Paper weight | 40 g/m2 to 450 g/m2 / 11 lb Bond to 119 lb Bond | |
Dimensions | 787 mm (W) e 705 mm (D) e 1,020 mm (H) / 30.98" (W) e 27.76" (D) e 40.16" (H) | |
Weight | 160 kg / 352.74 lb * Large Capacity Stacker LS-507 + Large Capacity Stacker Handcart LC-502: 180 kg / 396.83 lb | |
Power | AC 100 V to 240 V, 50/60 Hz (supplied from power cord) DC 24 V, 5 V (supplied from partial front stage) | |
Maximum power consumption | 240 W or less |
