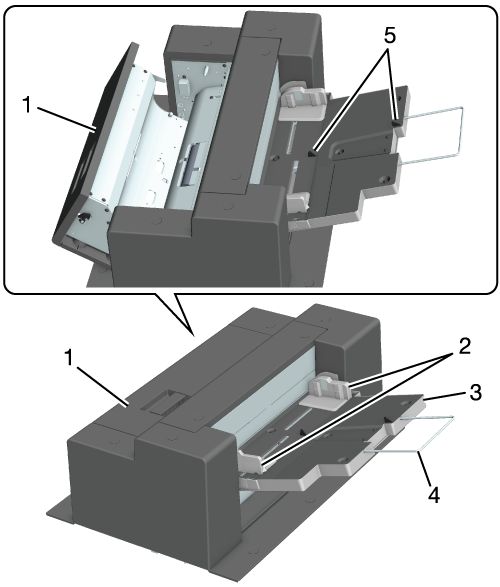

No. | Name | Description |
---|---|---|
1 | Top door | When clearing a paper jam, open the door and remove the paper. |
2 | Side guides (2 locations) | It is run alongside both sides of the set paper. |
3 | Bypass tray | Open to the right and load the paper. |
4 | Auxiliary guide | Pull out when loading the large-size paper. |
5 | Paper detection sensor | Detect presence of loaded paper. |
Name | Multi Bypass Tray MB-511 |
Applicable unit | Paper Feeder Unit PF-712/Paper Feeder Unit PF-812 (mounted in the paper feeder unit nearest the machine) |
Type | Bypass feed tray |
Feed capacity | 250 sheets (80 g/m2 / 21 lb Bond, stack height 27.5 mm / 1.08") Coated paper: 1 sheet |
Paper size | Standard: SRA3 w, A3 w, B4 w, SRA4 w/v, A4 w/v, B5 w/v, A5 w/v, B6 w*, A6 w*, 13 e 19 w, 12 e 18 w, 11 e 17 w, 8.5 e 14 w, 9 e 11 v, 8.5 e 11 w/v, 8 e 13 w, 5.5 e 8.5 w, 8K w, 16K w/v Custom: Widthwise 100 mm* to 330.2 mm, lengthwise 148 mm to 487.7 mm / Widthwise 3.94"* to 13", lengthwise 5.83" to 19.2" Tab paper: A4T w/v, 8.5 e 11T w/v *: Size that is less than 139.7 mm / 5.5" widthwise can be loaded when Multi Bypass Tray MB-511 is mounted in the 1st paper feeder unit. |
Paper type | Plain paper, Fine, Color Specific, Coated-G, Coated-M, Tab paper |
Paper weight | 52 g/m2 to 350 g/m2 / 14 lb Bond to 93 lb Bond * 217 g/m2 to 350 g/m2 / 58 lb Bond to 81 lb Bond recommended paper direction is orthogonal, in the same direction as the feed. |
Dimensions | 504.8 mm (W) e 635.4 mm (D) e 226.2 mm (H) / 19.87" (W) e 25.02" (D) e 8.91" (H) (with paper feeder unit mounted) 572 mm (W) e 635.4 mm (D) e 345.2 mm (H) / 22.52" (W) e 25.02" (D) e 13.59" (H) (single unit) |
Weight | 19.5 kg / 42.99 lb |
Power | Supply from the mounted paper feeder unit |
Maximum power consumption | DC: 200 W or less |
