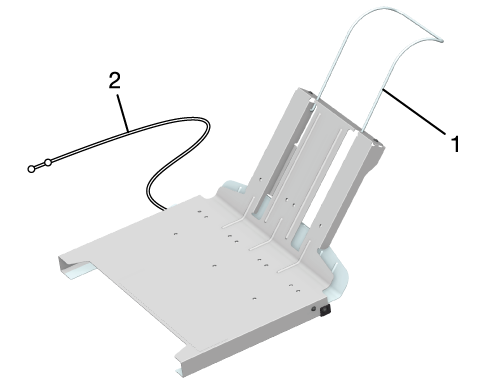

No. | Name | Description |
---|---|---|
1 | Extension guide | Prevents long paper from falling from feed extension tray. |
2 | Wire rope | Reinforcing wire that attaches to the feed extension tray |
Name | Banner Paper Tray Unit MK-760 | |
Applicable unit | Multi Bypass Tray MB-511 | |
Function | Banner paper printing | |
Paper type | Plain paper, Fine, Color Specific, Coated-G, Coated-M | |
Banner paper size | Widthwise 100 mm to 330.2 mm, lengthwise 487.8 mm to 1,300 mm / Widthwise 3.94" to 13", lengthwise 19.2" to 51.18" *Printing onto banner paper with a width shorter than 279 mm / 10.98" (widthwise) may not be carried out accurately depending on the environmental conditions or the paper type used. | |
Banner paper weight | 128 g/m2 to 300 g/m2 / 34 lb Bond to 81 lb Bond | |
Normal paper mode | Simplex only | |
Tray capacity | Lengthwise 1,200 mm / 47.24" or smaller paper (excluding Coated paper): 10 sheets Lengthwise 1,201 mm / 47.28" or larger paper (excluding Coated paper): 1 sheet Coated paper: 1 sheet | |
Maximum print area | 1,295 mm / 50.98" | |
Dimensions | When housed: 432 mm (W) e 368 mm (D) e 200 mm (H) / 17.01" (W) e 14.49" (D) e 7.87" (H) When extended: 583 mm (W) e 368 mm (D) e 309 mm (H) / 22.95" (W) e 14.49" (D) e 12.17" (H) | |
Weight | 0.9 kg / 1.98 lb |
