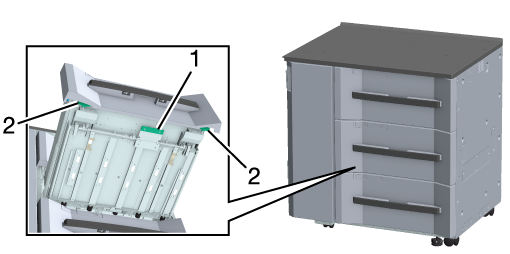

No. | Name | Description |
---|---|---|
1 | Horizontal conveyance cover lever | When clearing a paper jam, open the guide, and remove the paper. |
2 | Horizontal conveyance knob | Turn this knob to output the jammed paper to the horizontal conveyance side. |
Name | Feed Adjuster FA-505 |
Applicable unit | Paper Feeder Unit PF-712 / Paper Feeder Unit PF-713 |
Type | Paper conveyance device for connecting multiple paper feeder units |
Paper Size | Widthwise 139.7 mm to 330.2 mm, lengthwise 139.7 mm to 487.7 mm / Widthwise 5.5" to 13", lengthwise 5.5" to 19.2"* *: For widthwise 250 mm to 330.2 mm / widthwise 9.84" to 13", up to 1,300 mm / 51.18" can be fed. |
Paper type | Plain paper, Fine, Color Specific, Coated, Tab paper |
Paper weight | 52 g/m2 to 350 g/m2 / 14 lb Bond to 93 lb Bond |
Dimensions | 604 mm (W) e 547 mm (D) e 64 mm (H) / 23.78" (W) e 21.54" (D) e 2.52" (H) * Conveyance section only |
Weight | Conveyance section: 8.5 kg / 18.74 lb Excluding conveyance section: 6 kg / 13.23 lb |
Power | Supply from paper feeder unit |
Maximum power consumption | 96 W or less |
