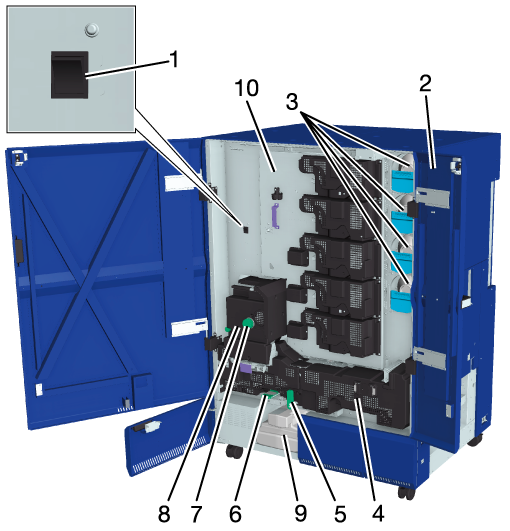

No. | Name | Description |
---|---|---|
1 | Main power switch | The customer engineer switches OFF/ON. Do not turn off under normal circumstances. |
2 | Toner supply door | Open when replacing Toner bottle. |
3 | Toner supply unit (Y, M, C, K) | Pull out forward when replacing Toner bottle. The Toner bottle provides four colors: Yellow (Y), Magenta (M), Cyan (C), and Black (K). |
4 | Fusing Conveyance Unit | Pull out in the case of a paper jam. For information about each lever or knob of the Fusing Conveyance Unit, check the screen that is displayed when a paper jam occurs. |
5 | Lever [M1] | When there is a paper jam, drop to the left and pull out Fusing Conveyance Unit, then remove paper. |
6 | Lever [M8] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
7 | Knob [M4] | When clearing a paper jam, turn the knob to feed the paper through. |
8 | Fusing unit | This part attaches the formed image to the paper. |
9 | Waste toner box | Waste toner will be collected. |
10 | Drum unit | This part is formed by the copy image. |

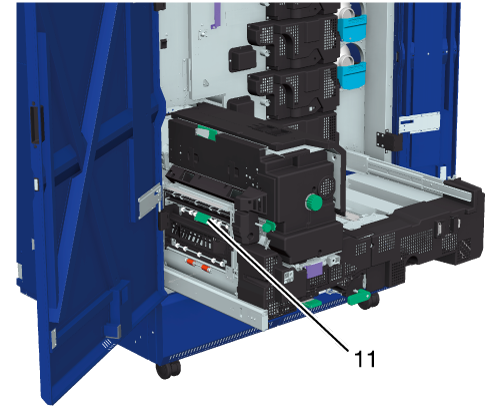

11 | Lever [M5] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
