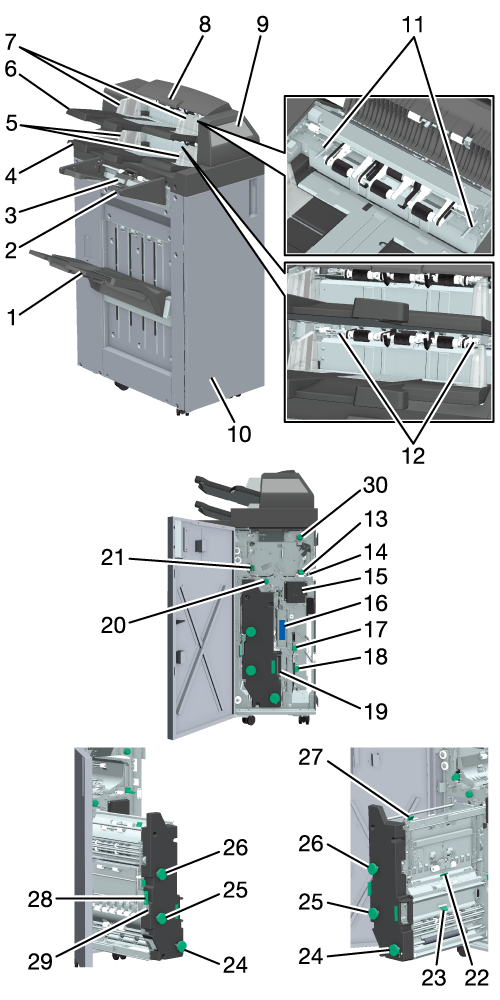

FoldingUnit FD-503 external
No. | Name | Description |
---|---|---|
1 | Main tray | Ejects folding-processed and punch-processed paper. |
2 | Folder tray | Ejects Tri-Fold-in, Tri-Fold-out, Double Parallel, or Gate paper. |
3 | Coordinating stopper | Prevents collapse in ejected double-parallel and double gate folded paper. |
4 | Lower tray (Post inserter) | Load the paper, etc. |
5 | Lower tray guide plates | It runs alongside the loaded cover paper and determines the position. |
6 | Upper tray (Post inserter) | Load the paper, etc. |
7 | Upper tray guide plates | It runs alongside the loaded cover paper and determines the position. |
8 | Upper cover handle | Open for processing if a paper jam occurs, or when setting the lever to prevent multi feed of Post inserter feed. |
9 | Folding unit control panel | Operate when using FoldingUnit FD-503, Finisher FS-541, or SaddleStitcher SD-506 manually. There are Multi-feed detection button, Staple selection button, Punch selection button, Fold selection button, and Start/Stop button. |
10 | Folding unit front door | Open when discarding punch scrap or clearing a paper jam. |
11 | Upper tray outside feed roller lock levers (2 locations) | Press in when locking the two Feed roller on the outside of Upper tray. |
12 | Lower tray outside feed roller lock levers (2 locations) | Press in when locking the two Lower tray on the outside of Feed roller. |
FoldingUnit FD-503 internal
No. | Name | Description |
---|---|---|
13 | Lever [FD1] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
14 | Lever [FD2] | When clearing a paper jam, open the Lever [FD1] before the guide, and remove the paper. |
15 | Jam position display | The location of the paper jam is indicated by a LED light. |
16 | Scrap box | Pull out when discarding punch scrap. |
17 | Lever [FD6] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
18 | Lever [FD7] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
19 | Handle [FD11] | When clearing a paper jam in the folding unit, hold the handle and pull out. |
20 | Knob [FD3] | When clearing a paper jam, turn the knob counterclockwise to feed the paper through. |
21 | Lever [FD4] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
22 | Lever [FD13] | When clearing a paper jam in the folding unit, hold the lever, open the guide, and remove the paper. |
23 | Lever [FD14] | When clearing a paper jam in the folding unit, hold the lever, open the guide, and remove the paper. |
24 | Knob [FD8] | When clearing a paper jam in the folding unit, turn the knob to feed the paper through. |
25 | Knob [FD9] | When clearing a paper jam in the folding unit, turn the knob to feed the paper through. |
26 | Knob [FD10] | When clearing a paper jam in the folding unit, turn the knob to feed the paper through. |
27 | Lever [FD12] | When clearing a paper jam in the folding unit, hold the lever, open the guide, and remove the paper. |
28 | Lever [FD15] | When clearing a paper jam in the folding unit, open the Lever [FD16] before the guide, and remove the paper. |
29 | Lever [FD16] | If a paper jam occurs in the folding unit, open to the left for processing. |
30 | Knob [FD5] | When clearing a paper jam, turn the knob counterclockwise to feed the paper through. |
Name | FoldingUnit FD-503 | |
Type | Single sheet processor with punch, fold and Post inserter function | |
Punch function | Paper ejected from machine or fed from Post inserter is punched one sheet at a time and ejected to Main tray. | |
Number of holes | Metric area: 2 holes/3 holes/4 holes/Swedish 4 holes Inch Area: 2 holes/3 holes | |
Hole diameter | Metric area: 6.5 mm / 0.26" (2 holes/4 holes/Swedish 4 holes) Inch Area: 6.5 mm / 0.26" (2 holes), 8.0 mm / 0.31" (3 holes) | |
Hole pitch | Metric area: 80 mm / 3.15" (2 holes/4 holes), 21 mm, 70 mm, 21 mm / 0.83", 2.76", 0.83" (Swedish 4 holes) Inch Area: 70 mm / 2.76" (2 holes), 108 mm / 4.25" (3 holes) | |
Vertical position of hole | Metric area: 10.5 mm / 0.41" (2 holes/4 holes/Swedish 4 holes) Inch area: 10.5 mm / 0.41" (2 holes), 9.5 mm / 0.37" (3 holes) | |
Paper weight | 50 g/m2 to 216 g/m2 / 13 lb Bond to 57 lb Bond | |
Paper Size | 2 holes: A3 w, B4 w, SRA4 v, A4 w/v, B5 w/v, A5 w/v, 12 e 18 w, 11 e 17 w, 9 e 11 v, 8.5 e 14 w, 8.5 e 11 w/v, 7.25 e 10.5 w/v, 5.5 e 8.5 v, Foolscap*, 8K w, 16K v Tab paper: A4T v, 8.5 e 11T v 3 holes: A3 w, B4 w, A4 v, B5 v, 12 e 18 w, 11 e 17 w, 9 e 11 v, 8.5 e 11 v, 7.25 e 10.5 v, 8K w, 16K v Tab paper: A4T v, 8.5 e 11T v *: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes. | |
Folding function | Fold type | Z-fold, Tri-Fold-in, Tri-Fold-out, Double Parallel, Gate, Half-Fold |
Paper weight | Z-Fold, Tri-Fold-in, Tri-Fold-out, Half-Fold: 50 g/m2 to 130 g/m2 / 13 lb Bond to 34 lb Bond Double Parallel, Double Gate: 50 g/m2 to 91 g/m2 / 13 lb Bond to 24 lb Bond | |
Paper Size | Standard: A3 w, B4 w, SRA4 w, A4 w, 12 e 18 w, 11 e 17 w, 8.5 e 14 w, 8.5 e 11 w, 8K w Custom: Widthwise 210 mm to 305 mm, lengthwise 279 mm to 458 mm / Widthwise 8.27" to 12.01", lengthwise 10.98" to 18.03" | |
Normal output function | Straight output | Paper ejected from machine is output to Main tray/Folder tray. |
Paper weight | 40 g/m2 to 450 g/m2 / 11 lb Bond to 119 lb Bond * The paper type is limited to 351 g/m2 to 450 g/m2 / 94 lb Bond to 119 lb Bond. | |
Paper Size | Main tray Standard: SRA3 w, A3 w , B4 w, SRA4 w/v, A4 w/v, B5 w/v, A5 w/v, B6 w, 13 e 19 w, 12 e 18 w, 11 e 17 w, 9 e 11 v, 8.5 e 14 w, 8.5 e 11 w/v, 7.25 e 10.5 w/v, 5.5 e 8.5 w/v, Foolscap*, 8K w, 16K w/v Custom: Widthwise 95 mm to 331 mm, lengthwise 139 mm to 483 mm / Widthwise 3.74" to 13.03", lengthwise 5.47" to 19.02" Tab paper: A4T v, 8.5 e 11T v *: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes. | |
Post inserter function | Paper type | Plain paper, Recycle, Fine, Special paper |
Paper weight | 50 g/m2 to 300 g/m2 / 13 lb Bond to 81 lb Bond | |
Paper Size | Standard: SRA3 w, A3 w, B4 w, SRA4 w/v, A4 w/v, B5 w/v, A5 v, 13 e 19 w, 12 e 18 w, 11 e 17 w, 8.5 e 14 w, 8.5 e 11 w/v, 7.25 e 10.5 w/v, 5.5 e 8.5 v, Foolscap*, 8K w, 16K w/v Custom: Widthwise 182 mm to 331 mm, lengthwise 139 mm to 483 mm / Widthwise 7.17" to 13.03", lengthwise 5.47" to 19.02" Tab paper: A4T v, 8.5 e 11T v *: Foolscap refers to 8.5 e 13 w, 8.25 e 13 w, 8.12 e 13.25 w, and 8 e 13 w sizes. | |
Load capacity | 500 sheets e 2-level (80 g/m2 / 21 lb Bond) | |
Tray capacity | Main tray 2,500 sheets: A4 w/v, B5 w/v, 8.5 e 11 w/v, 9 e 11 w, 16K w/v 1,500 sheets: A3 w, B4 w, 8 e 13 w, 12 e 18 w, 11 e 17 w, 8.5 e 14 w, SRA3 w, SRA4 w/v, 13 e 19 w, 8K w 500 sheets: A5 w/v , B6 w, 5.5 e 8.5 w/v Folder tray 30 sets or more (80 g/m2 / 21 lb Bond or less for all fold types) | |
Dimensions | 400 mm* (W) e 656 mm (D) e 1,231 mm (H) / 15.75"* (W) e 25.83" (D) e 48.46" (H) *Main tray mounting, When stored in bisection tray: 667 mm / 26.26" Main tray mounting, When bisection tray is pulled out: 784 mm / 30.87" | |
Weight | Approx. 130 kg / 286.6 lb | |
Power | Metric area: AC 230 V, 50/60 Hz (supply from power cord) Inch Area: AC 115 V, 50/60 Hz (supply from power cord) DC 24 V, 5 V (supplied from partial front stage) | |
Maximum power consumption | 180 W or less |
