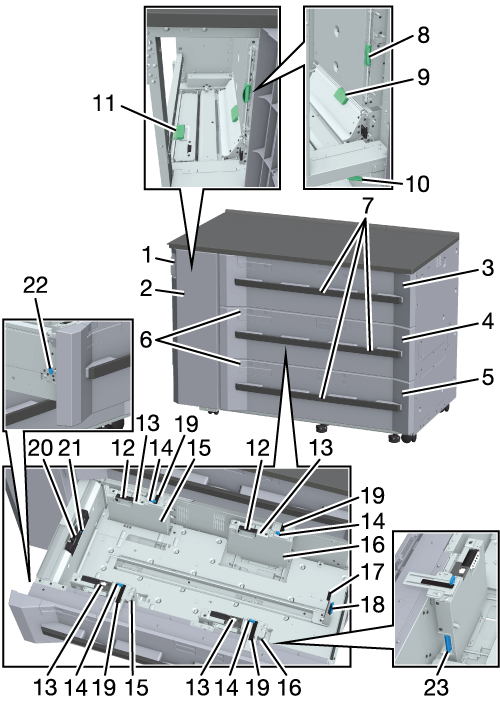

No. | Name | Description |
---|---|---|
1 | Tray left side door knob | Used when opening Tray left side door. |
2 | Tray left side door | Open when opening Right side door to handle paper jams, and when clearing paper feeder unit tray paper jams. |
3 | Upper tray (Tray 1) (2nd unit: Tray 4) | Stores 1,080 sheets* (80 g/m2 / 21 lb Bond). * Banner paper: 750 sheets |
4 | Middle tray (Tray 2) (2nd unit: Tray 5) | Stores 1,080 sheets* (80 g/m2 / 21 lb Bond). * Banner paper: 750 sheets |
5 | Lower tray (Tray 6) (2nd unit: Tray 6) | Stores 1,540 sheets* (80 g/m2 / 21 lb Bond). * Banner paper: 800 sheets |
6 | Air nozzle confirmation window | When adjusting the air level in the Middle tray or Lower tray, you can check the paper feedability through this window. You cannot check it from the Upper tray. |
7 | Tray handle | Hold and pull the handle when pulling out the tray. |
8 | Lever [PF1] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
9 | Lever [PF2] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
10 | Lever [PF3] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
11 | Lever [PF4] | When clearing a paper jam, hold the lever, open the guide, and remove the paper. |
12 | Side air nozzle | Blows air for the paper to float on in order to prevent multiple sheets of paper being fed in at the same time. |
13 | Paper holding plate fixing lever (4 locations) | Slide from the fixed position to the right depending on the target paper conditions. |
14 | Side guide lock knobs (4 locations) | Turn when moving or fixing Side guides in place. |
15 | Side guides (left) (2 locations) | Align this guide with both sides of the loaded paper. |
16 | Side guides (right) (2 locations) | Align this guide with both sides of the loaded paper. |
17 | Rear guide plate | Align this guide with the rear edge of the loaded paper. |
18 | Rear edge guide lock release lever | When moving Rear guide plate, press the lever on the left side to unlock. |
19 | Paper size indicator | Check the position of Side guides using the scale. |
20 | Edge air nozzle | Blows air to separate the paper. |
21 | Upper limit sensor position adjustment lever | When the lever is lifted, feed performance may drop, so do not move (slide) from the state when fixed at bottom side. |
22 | Bottom plate fixing knob | Turn clockwise while sliding forward, and adjust the bottom tray in the highest position. |
23 | Side guide lock release lever | When moving Side guides, press the lever on the back side to unlock. |

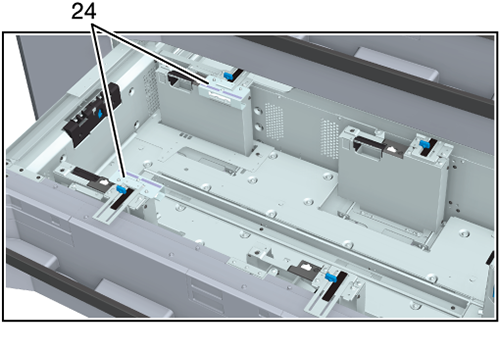

24 | Side auxiliary guides (2 locations) | When loading tab paper, attach to Side guides. |
Name | Paper Feeder Unit PF-812 |
Type | Large Capacity 3-stage Paper Feed Unit |
Paper size | Standard: SRA3 w, A3 w, B4 w, SRA4 w, A4 w/v, 12 e 18 w, 11 e 17 w, 8.5 e 14 w, 8.5 e 11 w/v, 8K w Custom: Widthwise 100 mm to 330.2 mm, Lengthwise 210 mm to 1,300 mm*1*2 / Widthwise 3.94" to 13", Lengthwise 8.27" to 51.18"*1 *2 Tab paper*3: A4T v, 8.5 e 11T v Envelope: Widthwise 210 mm to 245 mm, lengthwise 210 mm to 375 mm / Widthwise 8.27" to 9.65", lengthwise 8.27" to 14.76" *1: Paper that is widthwise 100 mm to 209.9 mm and lengthwise 900.1 mm to 1,300 mm / widthwise 3.94" to 8.26"and lengthwise 35.44" to 51.18" can be loaded only when the Multi Bypass Tray MB-511 and Banner Paper Tray Unit MK-760 are mounted. *2: For paper of lengthwise 487.7 mm / 19.2" or less, the ratio of 1:2 or more is not recommended. *3: When loading tab paper, attach Side auxiliary guides. Series B paper is set to JIS or ISO standard size by default. This setting differs depending on the shipping region. For JIS/ISO switching, contact your service representative. Detectable fixed sizes can be changed. Furthermore, use of K size can be selected on the [Utility] screen, and K size can be detected. |
Paper type | Plain paper, Fine, Color Specific, Coated-G, Coated-M, Tab paper, Textured*, Envelope* *: 1st Lower tray only |
Paper weight | 52 g/m2 to 450 g/m2* / 14 lb Bond to 119 lb Bond* *: The following paper sizes are only available for 351 g/m2 to 450 g/m2 / 94 lb Bond to 119 lb Bond. It can only be set in the 1st Lower tray. Standard: SRA3 w, A3 w, 13 e 19 w, 12 e 18 w, 11 e 17 w Custom: Widthwise 279.4 mm to 330.2 mm, lengthwise 420 mm to 487.7 mm / Widthwise 11" to 13", lengthwise 16.54" to 19.2" Banner paper (lengthwise 487.8 mm to 900 mm / lengthwise 19.2" to 35.43"): 128 g/m2 to 300 g/m2 / 34 lb Bond to 81 lb Bond |
Feed capacity | Upper tray/Middle tray: 1,080 sheets* (80 g/m2 / 21 lb Bond, stack height 119.1 mm / 4.69") * Banner paper: 750 sheets Lower tray: 1,540 sheets* (80 g/m2 / 21 lb Bond, stack height 169.4 mm / 6.67") * Banner paper: 800 sheets |
Dimensions | 1,424 mm (W) e 772 mm (D) e 1,038 mm (H) / 56.06" (W) e 30.39" (D) e 40.87" (H) |
Weight | Approx. 324 kg / 462.97 lb |
Power | Metric area: 220 V to 240 V, 50/60 Hz (supplied through the power cord.) Inch area: 100 V to 127 V, 50/60 Hz (supplied through the power cord.) DC 24 V, 12V, AC 200 V to 240 V, 50/60 Hz (partially supplied from the front stage.) |
Maximum power consumption | 650 W or less (Dehumidifier Heater HT-506 option not included) |
