[Package Color Auto Adj.]
Overview
Collectively adjust items related to image stability. The type of adjustment to be performed can be set freely.
NOTICE
- The optional Intelligent Quality Optimizer IQ-501 is required to use this function.
Video of Procedure
Procedure
2

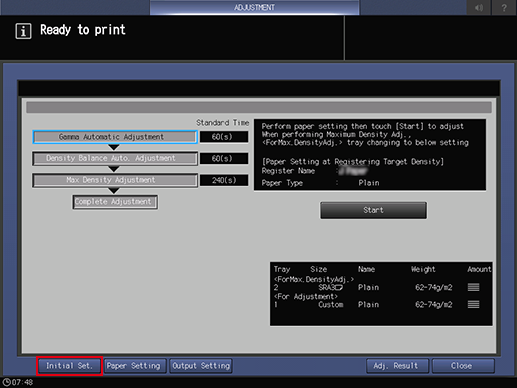

Before performing the adjustment, press [Initial Set.] as necessary to enable the adjustment settings to be changed.
3
Change any of the setting contents ([Screen of Adjustment Target], [Additional Adjustment], [Maximum Density Adjustment Tray], [Adjustment Tray]).
The [Auto Run] automatically performs [Package Color Auto Adj.] when the power of the system is turned on. For details, refer to [Initial Set.].
4
Load the paper used when registering the target density into the tray, and select that tray.
5
You can also change the [Paper Setting] and [Output Setting].
6
Press [Start].
7

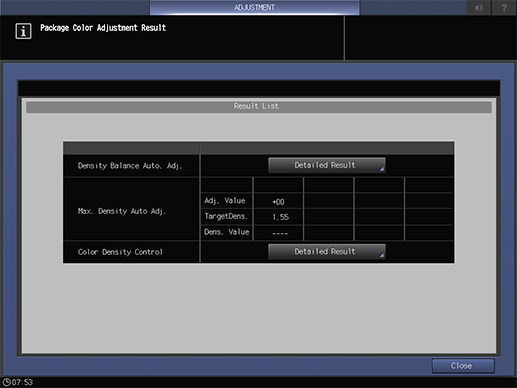

When the adjustment is completed, the result of the adjustment is displayed.
8
Confirm the contents.
