Cleaning the Scanning Section
Overview
Clean the scanning section of ADF using the procedure detailed below if it becomes dirty.
NOTICE
- Be careful not to damage the glass when cleaning.
Procedure
1

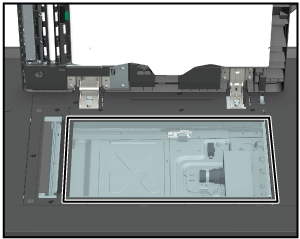

Open the ADF and wipe off any dirt on the Original glass using a soft, clean cloth.
If it is difficult to remove the dirt, wipe the original glass using a cloth dampened with water.
NOTICE
- When cleaning the original glass, never use solvents such as benzine or thinner, or sprays containing volatile components.
2

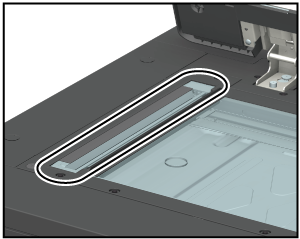

Wipe the slit glass until clean with a soft, clean cloth.
3

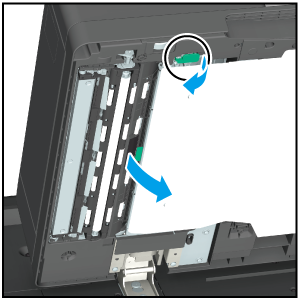

Open Lever [DF1] and then conveyance guide.
4

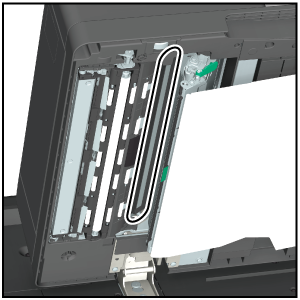

Wipe the Slit scan glass for back side until clean using a soft, clean cloth.
5

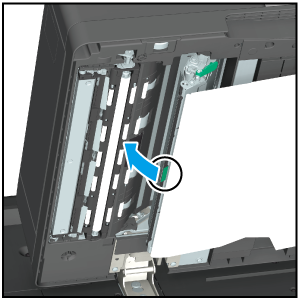

Press the label section to close the conveyance guide.
6
Close the ADF.
