Cleaning the output unit
Overview
Clean the output unit using the procedure detailed below if it becomes dirty.
CAUTION
- Be sure to check the specified areas to see if they need cleaning before switching the system ON.
- If the power is turned on with the door of the system closed, the inside of the fusing unit will become hot, which may cause burns when cleaning the area around the fusing unit.
NOTICE
- Be careful not to knock the dirt into the paper feed path when cleaning.
Procedure
1
Open the Front door and Left side door.
2
Turn the Main power switch on and then turn the Sub power switch on.
For details about how to turn the power on or off, refer to Power-ON/OFF.
3
Turn Lever [M4] in clockwise direction. Hold Lever [M4] and pull out the Duplex part.
4
First power the Sub power switch off and then power the Main power switch off.
For details about how to turn the power on or off, refer to Power-ON/OFF.
5

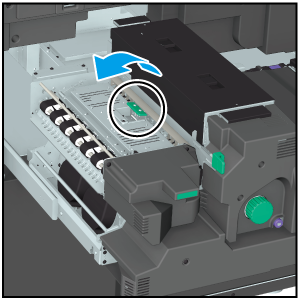

Open the Lever [M7].
6

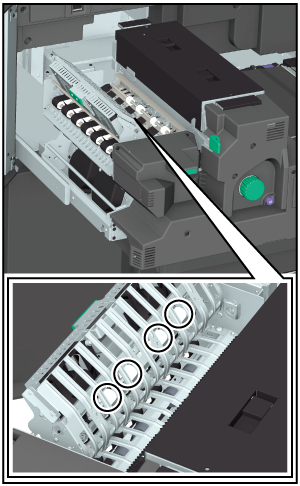

Apply some cleaning alcohol to a soft cloth and wipe clean the transport roller.
7

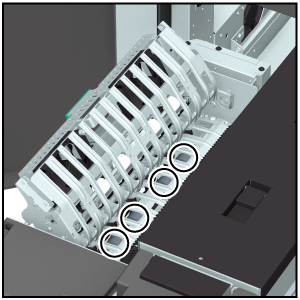

Apply some cleaning alcohol to a soft cloth and wipe clean the decurler inlet roller.
8

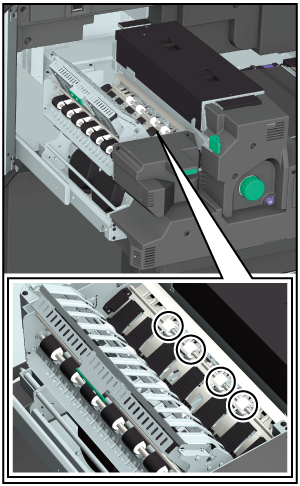

Apply some cleaning alcohol to a soft cloth and wipe clean the opposing rollers of fusing outlet roller .
9
Close the Lever [M7].
10
Push Duplex part into the machine, and return Lever [M4] to its home position.
11
Close Left side door and Front door.
