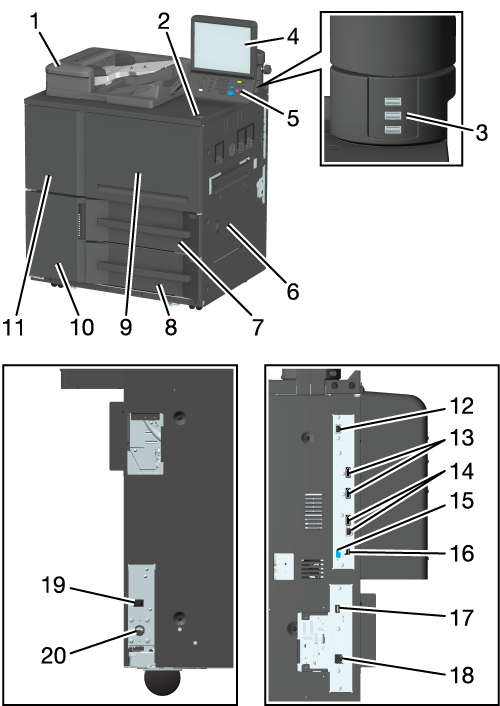

1

Reverse Automatic Document Feeder (ADF)

A multi-page original can be fed and scanned one sheet at a time.
Even both the front and back sides of 2-sided original are scanned in one feed, without inverting it.

* AccurioPress 7136 / AccurioPress 7120 only

2

Sub power switch

Turns the machine power ON/OFF.

3

USB port (USB 2.0 Type A e 3)

Used when connecting external memory media (USB memory, USB-HDD), keyboard, mouse, IC card authentication unit, Intelligent Media Sensor IM-101, etc.

USB port (USB 2.0 Type A e 3) supports low power devices only. Please provide an external supply of power for devices that require a large amount of power.

4

Touch panel

Displays the screens such as the [MACHINE] screen, and set up operations. Also, displays the operation method and method for handing problems.

5

Control panel

Press when operating and setting up.

6

Right side door

When clearing a paper jam, open the door and remove the paper.

7

Tray 1

Holds 1,600 sheets (64 g/m² / 17 lb Bond) and 1,500 sheets (80 g/m² / 21 lb Bond).

8

Tray 2

Holds 1,600 sheets (64 g/m² / 17 lb Bond) and 1,500 sheets (80 g/m² / 21 lb Bond).

9

Front door

Open when clearing a paper jam or when turning Main power switch ON/OFF.

10

Toner supply door

Open when replacing Toner bottle or Waste toner box.

11

Left side door

Open together with Front door when clearing a paper jam or when turning Main power switch ON/OFF.

12

LAN port

Port for customer engineer (CE) only.

13

Intelligent Quality Optimizer Connection Port

Used when connecting the Intelligent Quality Optimizer IQ-501 / Auto Inspection Unit UK-301 cable (with Video Interface Kit VI-512 mounted only).

14

Video Interface Kit connection port

Used when connecting a Image Controller manufactured by a third party.

* Video Interface Kit VI-513 (optional) is required to connect the Image Controller manufactured by a third party and the machine using a cable.

15

LAN port

Port for customer engineer (CE) only.

16

Video Interface Kit connection port

Used when connecting the Auto Inspection Unit UK-301 cable (with Video Interface Kit VI-513 mounted only).

17

USB port (USB3.0 TypeA e 1)

Used when connecting external memory media (USB memory, USB-HDD), keyboard, mouse, IC card authentication unit, Intelligent Media Sensor IM-101, etc.

USB port (USB 3.0 TypeA e 1) supports low power devices only. Please provide an external supply of power for devices that require a large amount of power.

18

Network port (10Base-T, 100Base-TX, 1000Base-T)

Connects an Ethernet cable to operate the system and uses as a network scanner.

19

Dehumidifier heater switch

Turns the dehumidify heater of this system ON/OFF.

20

Power cord

Supplies power to machine.
