Cleaning the Fusing unit
Overview
Clean the Fusing unit using the procedure detailed below if it becomes dirty.
Check the areas to be cleaned every day before turning on the power of the machine.
CAUTION
- Be sure to check the specified areas to see if they need cleaning before switching the machine ON.
- If the power is turned on with the door of the machine closed, the inside of the fusing unit will become hot, which may cause burns when cleaning the area around the fusing unit.
NOTICE
- Be careful not to knock the dirt into the paper feed path when cleaning.
Procedure
1
Open the Front door and Left side door.
2
Turn the Main power switch on and then turn the Sub power switch on.
For details about how to turn the power on or off, refer to Power-ON/OFF.
3
Turn Lever [M4] in clockwise direction. Hold Lever [M4] and pull out the Duplex part.
4
First power the Sub power switch off and then power the Main power switch off.
For details about how to turn the power on or off, refer to Power-ON/OFF.
5

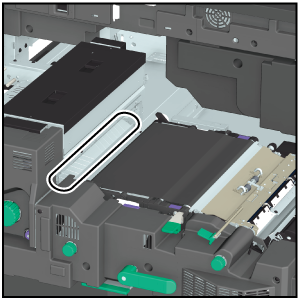

Wipe the pre-fusing guide until clean using a soft, clean cloth.
6

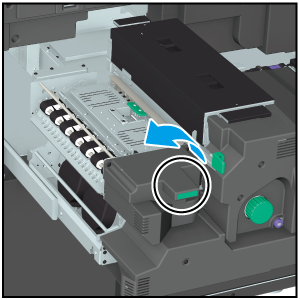

Open the Lever [M8] and then output unit.
7

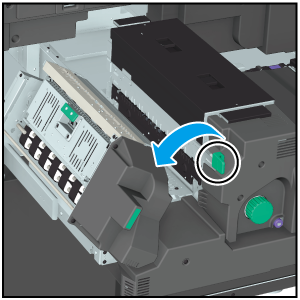

Open the Lever [M9] and then fusing output unit.
8

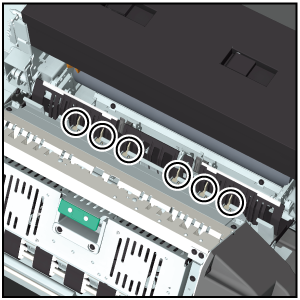

Wipe the fusing separation claw/Lw until clean using a soft, clean cloth.
9

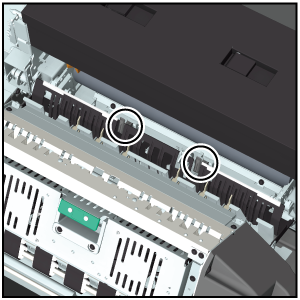

Wipe the fusing separation claw/Up until clean using a soft, clean cloth.
10
Close the fusing output unit and return the output unit to its home position.
11
Push Duplex part into the machine, and return Lever [M4] to its home position.
12
Close Left side door and Front door.
