[Quality Adjustment] is an adjustment made to adjust the brightness and contrast of the image to be output and to stabilize the density.
You should make adjustments to the image quality on a daily basis in order to reproduce stable density, and perform [Quality Adjustment] as necessary. Be sure to also perform [Quality Adjustment] if you have changed the screen or paper, or if the density is a particularly important factor.
For [Quality Adjustment], the flow may differ depending on the required accuracy levels.
Required Adjustment Workflow | Standard User | Expert User |
---|---|---|
0 | ||
0 | ||
0 | ||
0 |
Perform [Quality Adjustment] on the system at the following timings.
After powering on
The daily adjustment flow (standard) is an adjustment that should be performed by all end users during day to day use.
Perform high-precision adjustments directly before outputting jobs in which density is particularly important, when the density stability is insufficient, or when using a different type of paper.
Perform once every 2 to 3 months on a regular basis.
When using a new type of paper
When outputting 1,000 to 2,000 copies*
*: Adjustments are performed automatically if Relay Unit RU-518m is mounted, in which case no action needs to be taken.
When changing the screen

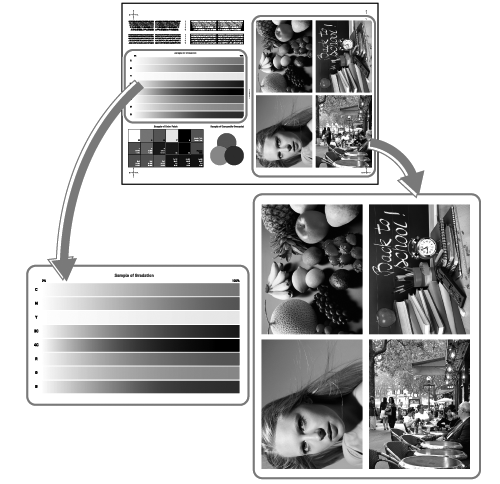

Make the adjustments while referring to the print result.
You can also adjust the color and image quality during printing using the printer driver or AccurioPro Print Manager.
When Adjusting the Overall Density
Tone Curve Adjustment (What Is [Tone Curve]?)
