User's Guide

> Adjustment > [PFU Air Assist Adjustment] > Screen

Screen

Overview
Screen Access
Screen

Overview

When Paper Feeder Unit PF-712, Paper Feeder Unit PF-713, or Paper Feeder Unit PF-812 is mounted, change the air blow conditions, and blow air to the paper loaded in the paper tray.

This function separates the loaded paper sheets to enable smooth paper feeding.

NOTICE
  • [PFU Air Assist Adjustment] is not displayed by default. To use this setting, please contact your service representative.

Screen Access

Touch panel - [MACHINE] - [Adjustment] - [PFU Air Assist Adjustment]

Screen

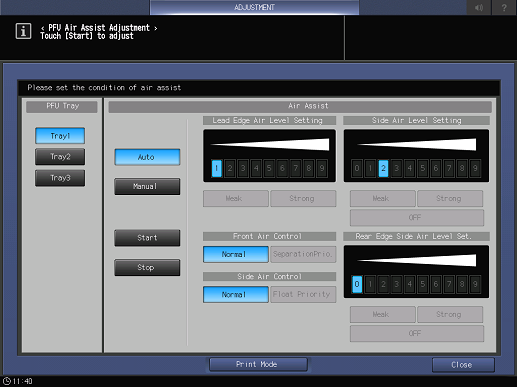

With Paper Feeder Unit PF-712/Paper Feeder Unit PF-713 mounted

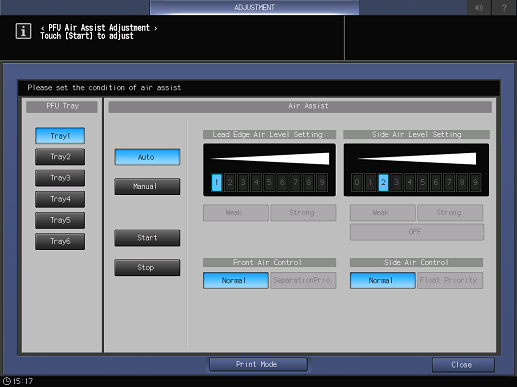

With Paper Feeder Unit PF-812 mounted
